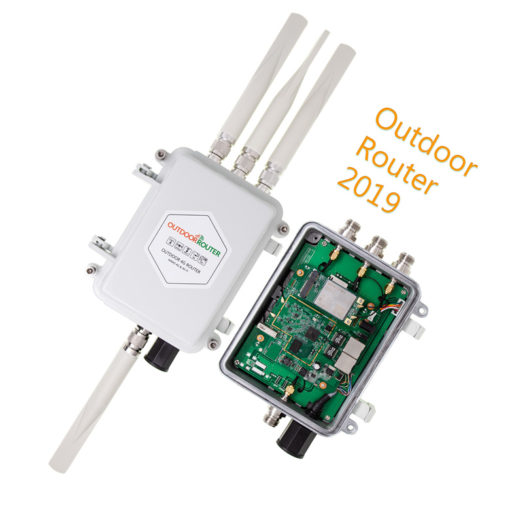

Cat6 Canadian Outdoor 4G LTE-A Router MIMO Wi-Fi
Powered by Cat6 cellular modem MC7455, the American standard outdoor router provides 300Mbps fast speed internet over 4G LTE-A cellular networks. Integrated MIMO technology for both 4G and Wi-Fi, also support LAN Ethernet. Designed for use in remote areas.
• Cat 6 Sierra 4G LTE-A modem – Support all American mobile networks.
• 2T2R MIMO Wi-Fi with 25~27dBm booster. Covers 300~600 feet radius.
• Wi-Fi speed is up to 300Mbps and supports 57 concurrent users.
• PoE Power over Ethernet over 100-yard. Included 48Volt PoE.
• IP67 rated. Withstand extreme weathers & rugged deployments.
Out of stock
Cat.6 LTE-A Mobile Modem
MIMO 3G/4G modem with high sensitivity
Download speed up to 300Mbps
North American standard frequencies
4G band B1/2/3/4/5/7/8/12/13/20/25/26/29/30/41
2.4G MIMO Wi-Fi with Booster
2T2R MIMO Wi-Fi and high-gain antennas
Wi-Fi transmission speed up to 300Mbps
Wi-Fi booster inside, cover 150~300 yards radius
Support up to 57 concurrent Wi-Fi users
PoE (power over Ethernet)
PoE support IEEE 802.3af/at
PoE injector included, work with 48V PoE switch
Support 100-yard PoE LAN cable
Support 12~24Volt PoE (*Modification needed)
IP67 Waterproof Protection
Designed for rugged deployments
IP67 hardened aluminum alloy case
Intergrated surge protection
America Cat.6 lTe-A Modem
The North American 4G Router uses CAT.6 Sierra MC7455 mobile modem which takes 2x 4G antennas and delivers 300Mbps downlink and 50Mbps uplink data rates.
The CAT.6 broadband mobile modem is designed to use in the United States and Canada. Except for 4G FDD-LTE and 4G TDD-LTE, it also supports 3G WCDMA mobile network.
** Warning! **
If use on Verizon, please ensure you already have the activated SIM card before buying.
Non-applicable to apply for a new Verizon SIM card with the modem currently.
The 4G broadband modem is certificated by FCC/GCF/IC/PTCRB.
2.4G MIMO Wi-FI with Booster

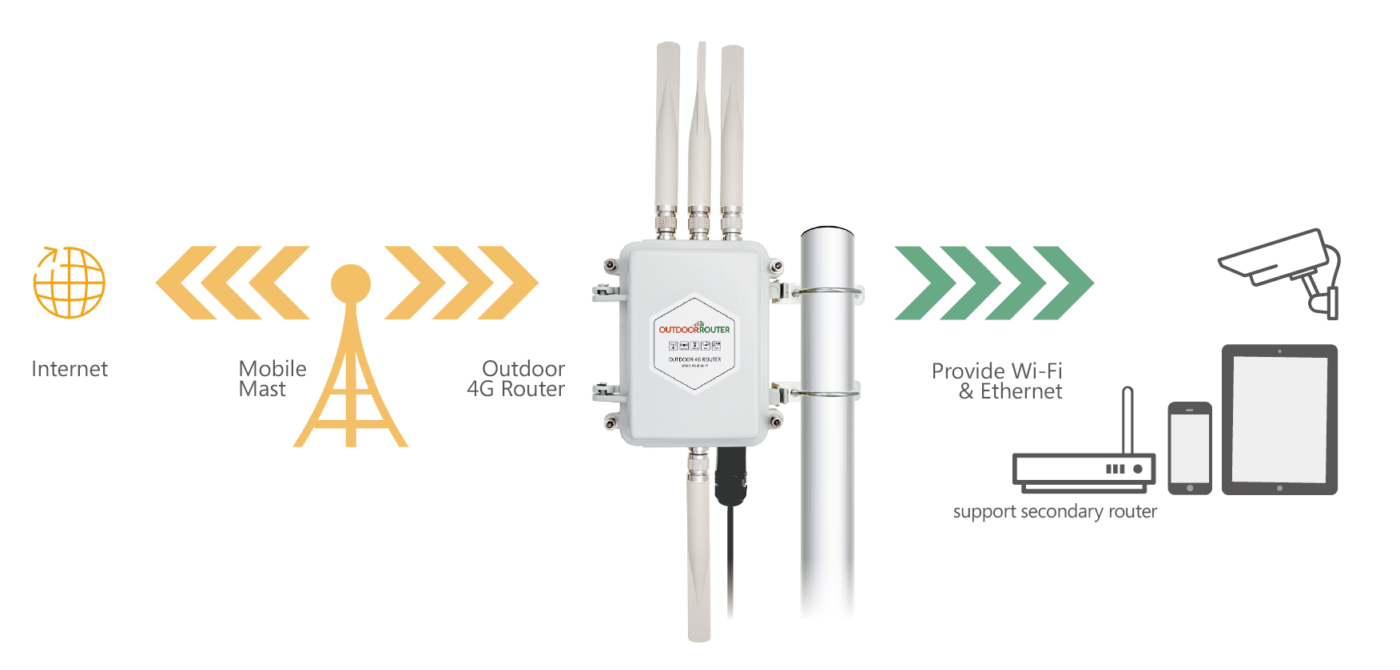

Integrated with 25~27dBm Wi-Fi booster, the North American 4G Router covers up to 150~300 yards radius in outdoor open area.
Complying IEEE 802.11b/g/n & IEEE 802.3u standards and 2T2R MIMO Wi-Fi technology, the outdoor MIMO router provides high-speed wireless speed up to 300Mbps. It accepts to connect up to 57 concurrent users to the Wi-Fi network.
You can enable/disable Wi-Fi, hide Wi-Fi SSID, encrypt Wi-Fi hotspot, setup firewall, and filter MAC address for the Wi-Fi network. The Ethernet (LAN) connection is also available.
PoE – Power over Ethernet Cable
Powered by PoE (power over Ethernet), you only need one LAN cable for both power and data. Supports 802.3af/at PoE standards, you can power up the outdoor router with 12~24~48Volt PoE switches over as long as 100-yard LAN cable.
The default 24Volt PoE injector and 30-feet LAN cable are included in the package.

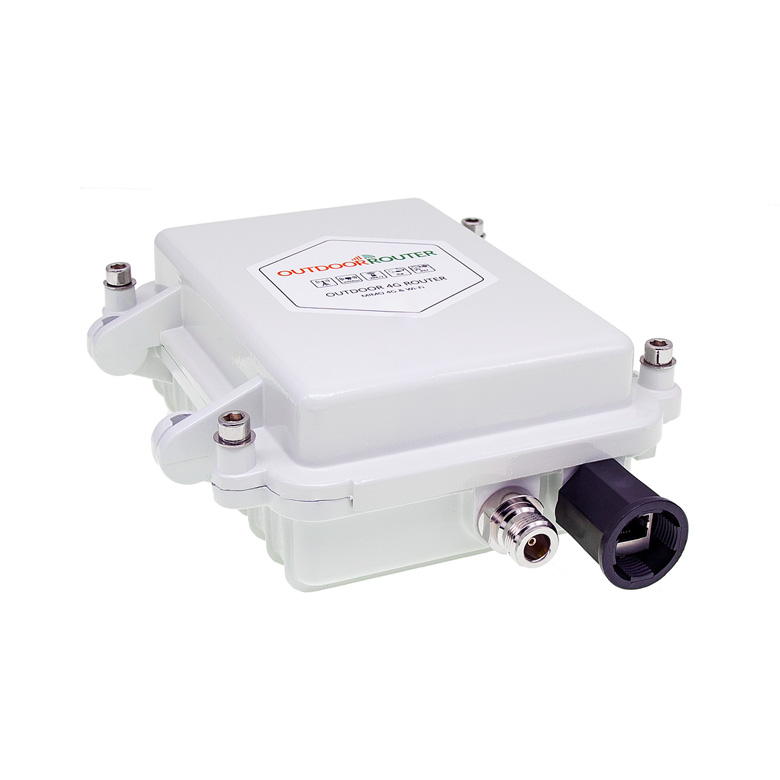

IP67 Rated Waterproof Protection

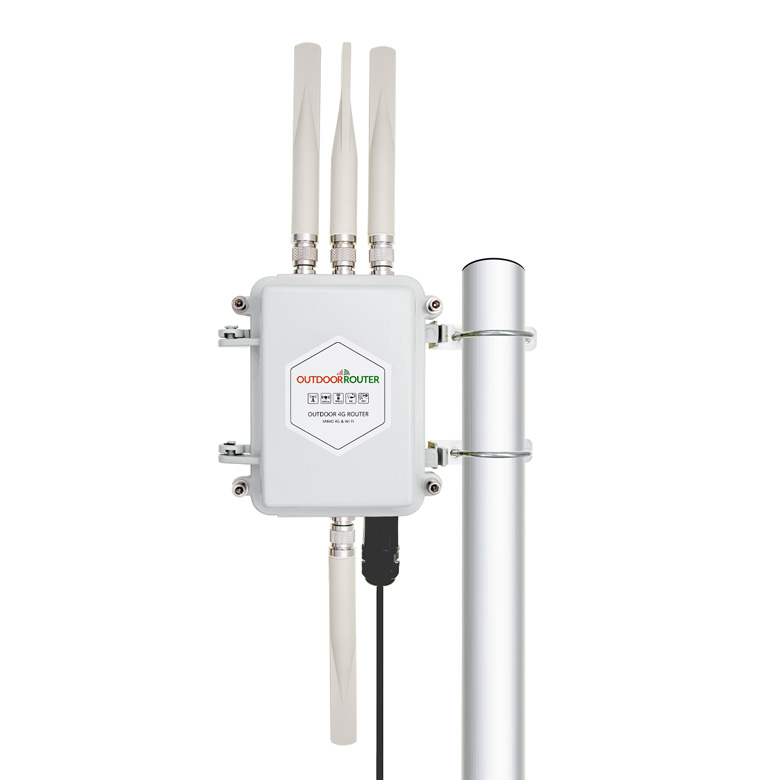

Ideal to deploy in rural areas such as the park, coast, camping site, construction site and outdoor events of the golf course, outdoor concert, flea market, and business summit.
IP67 hardened industrial-grade aluminum alloy case enclosure the 4G Outdoor Router to withstand extreme weather conditions and rugged deployments. The outstanding metallic case could protect the 4G router from dust and capable of withstanding water immersion above 3 foot for 30 minutes.

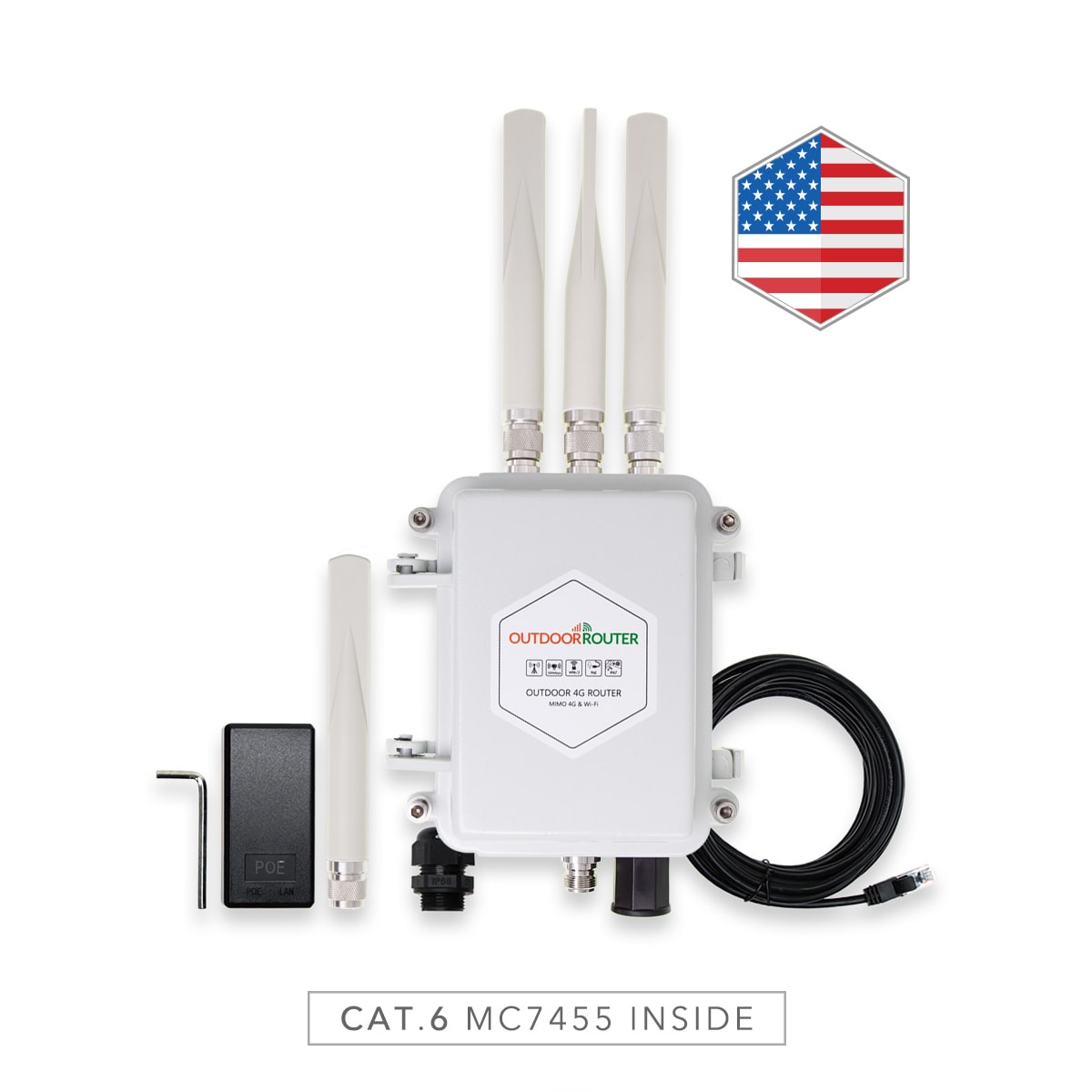

What Will You Get in the Package
1 x 4G Outdoor MIMO Router
4 x Omni Antenna
1 x 30-feet LAN Cable
1 x 48V PoE Injector
1 x Mounting Set & Tool
1 x SIM Card Adapter
