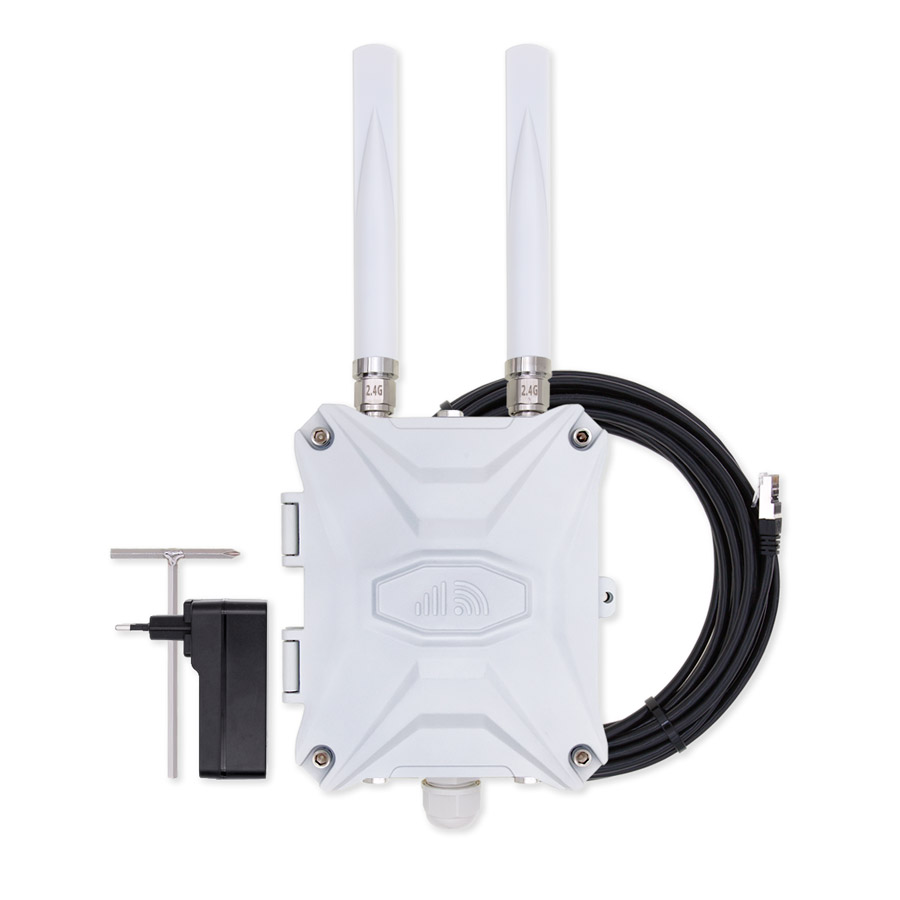

Outdoor WiFi Extender MIMO Hotspot
C$248
Outdoor WiFi extender with MIMO 2.4G WiFi hotspots provides a max 300Mbps speed rate. It comes with surge protection and a waterproof enclosure for use in outdoor areas and rugged deployments.
Outdoor CPE with 27dBm WiFi boosters – Covers 100~260 meters.
Fast speed up to 300Mbps and supports 57 concurrent users.
Standard 48V PoE – Supports PoE injector switch and DC power.
A waterproof anti-dust antirust enclosure withstands extreme weather.
Exclude 3G/4G cellular modem!
4 in stock
An outdoor WiFi extender connects to the existing 2.4GHz wireless hotspot via WiFi relay (1) or connects to an internet router by LAN cable via PoE injector (2).
Then provides internet connection on its own WiFi hotspot driven by MIMO 1-watt WiFi booster.
2.4G MIMO Wi-Fi Hotspot
1-watt WiFi booster covers 100~250 meters
WiFi transmission speed up to 300Mbps
Support up to 57 concurrent WiFi users
PoE (power over Ethernet)
PoE supports IEEE 802.3af/at sources
Include 48Volt PoE injector & LAN cable
It also accepts 9~48Volt DC power
IP67 Waterproof Protection
Designed for rugged deployments
Waterproof gland and connectors
Integrated excellent surge protection
Opensource Hardware
Prebuilt full-functional fat AP firmware
Full authority with SSH, Telnet, etc
Free remote access Traversal-Cloud
2.4G MIMO Wi-FI with Booster
Powered by 27dBm (1-Watt) MIMO WiFi boosters, the outdoor WiFi extender covers up to 100~250 meters in the open area.
Complying IEEE 802.11b/g/n & IEEE 802.3u standards and 2T2R MIMO WiFi technology, the outdoor WiFi extender provides fast wireless speed max 300Mbps and accepts to connect up to 57 concurrent users.
You can enable/disable WiFi, hide WiFi SSID, encrypt WiFi hotspot, set up the firewall, and filter MAC address for the WiFi network.
PoE – Power over Ethernet Cable
The default power source on an outdoor WiFi extender is PoE, short of power over Ethernet. You can use one single LAN cable to send power and data to the extender. It supports 802.3af/at standard 48~52Volt PoE injector and PoE switch. The LAN cable can use up to 100 meters and extend even longer with a PoE extender.
It also supports a regular DC power on 9~48Volt. You can power up the extender with a traditional AC to DC power adapter on the DC power socket.

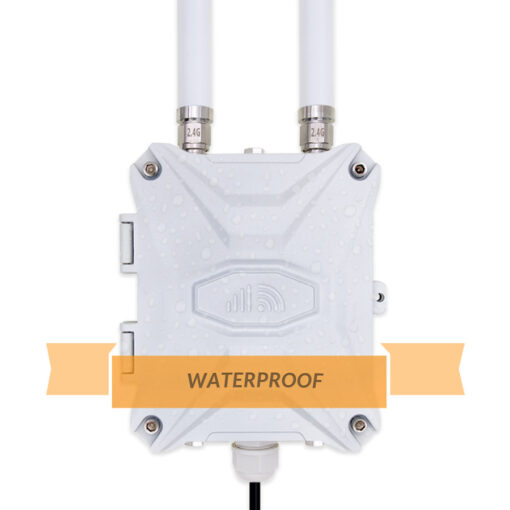

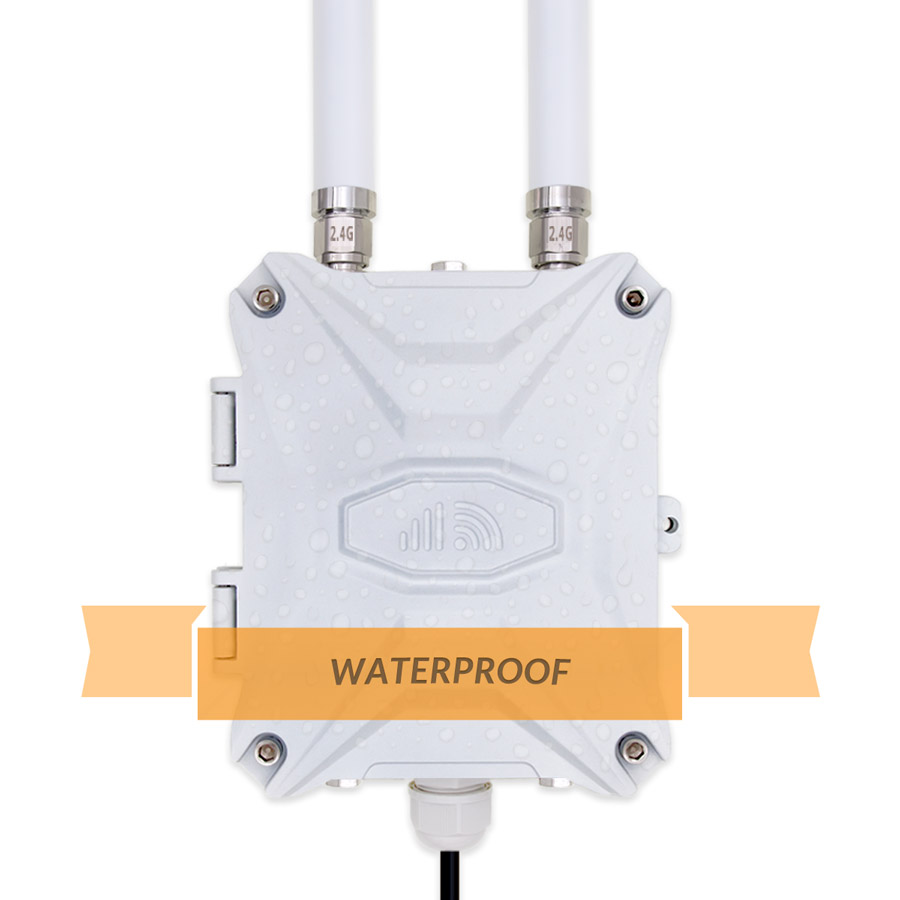

IP67 Rated Waterproof Protection
Diecast from anti-corrosion aluminum by 100-ton pressure. The outdoor WiFi extender has a unique designed enclosure with a weather-proof coating.
Durable waterproof enclosure designed for extrem environments.
A set of o-rings seals and gaskets against water and dust.
With effective heatsink fins and rain diverters, the WiFi extender works in the temperature range of -40° ~ +80° celsius.
What Will You Get in the Package

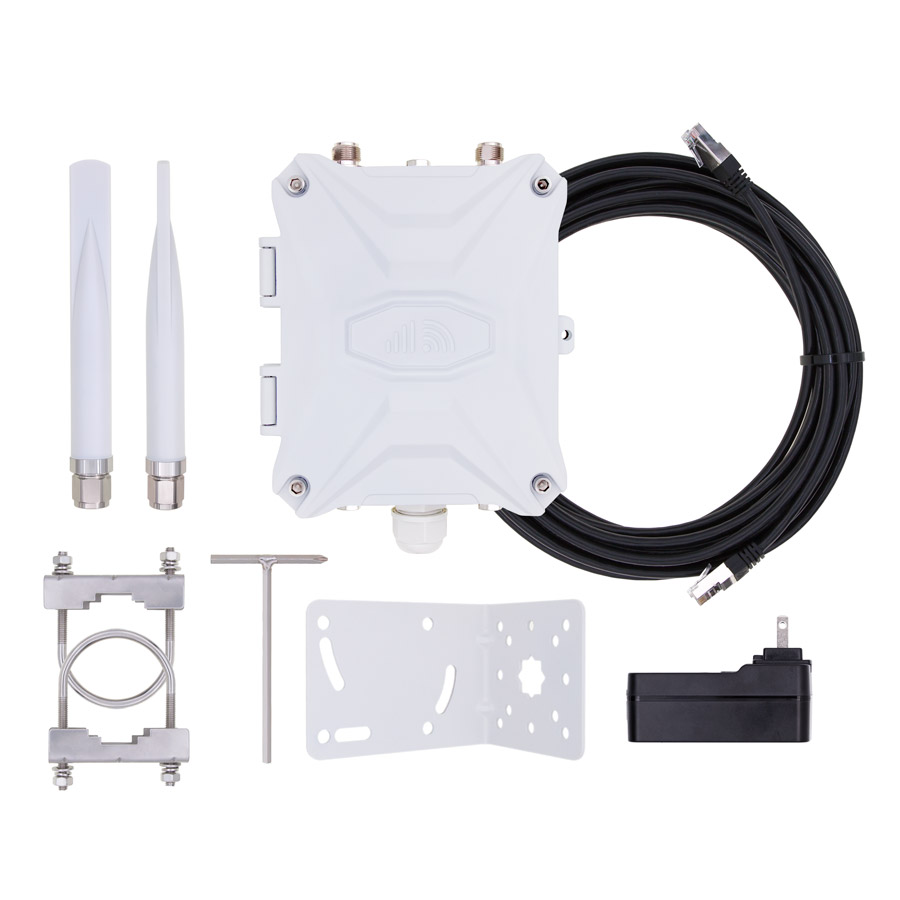

Package Contents
1 x Outdoor WiFi Extender
2 x Omni WiFi Antenna
1 x 10-Meter LAN Cable
1 x 3-Meter LAN Cable
1 x PoE Injector
1 x Mounting Set & Tool
Be the first to review “Outdoor WiFi Extender MIMO Hotspot” Cancel reply
You must be logged in to post a review.
Hardware
CPU: | Qualcomm Atheros QC9531 |
Frequency: | 650MHz |
Memory: | 128MB |
Flash: | 16MB |
LAN Port: | 1x10/100Mbps RJ45 port on PoE injector |
Indicator: | Power & system |
Consumption: | < 3 Watt |
Temperature: | Working: -30 to 80°C Storage: -50 to 95°C |
Humidity: | 10%~90% RH |

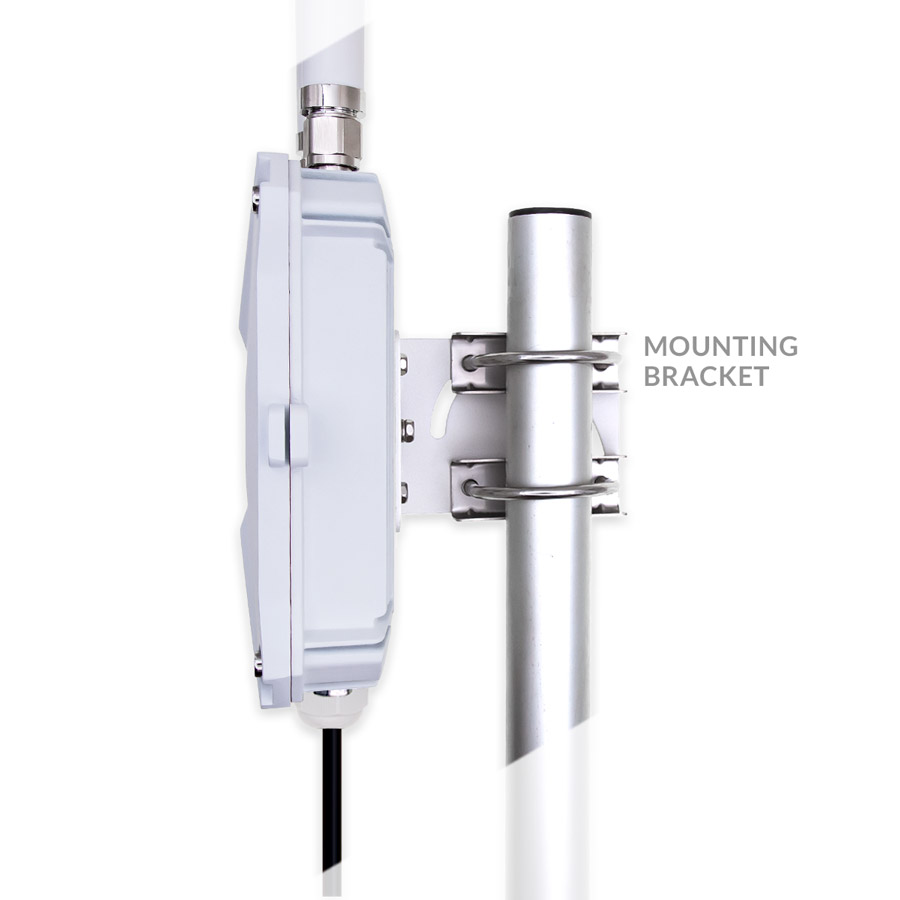

Installation: | Pole mounted |
Wi-Fi Antenna: | Frequency: 2400~2500MHz Gain: 5dBi / V.S.W.R.: ≤ 2.5 |
PoE
Input power: | 12~24~48Volt |
PoE standard: | 802.3af/at |
Cable length: | Support 50~100 meters |
Wiring: | Ethernet 1,2,3,6 / DC+ 4,5 / DC- 7,8 |
Wi-Fi Booster
Wi-Fi standards: | IEEE 802.11 b/g/n & IEEE 802.3u |
Transmission rate: | 300Mbps by 2T2R MIMO Wi-Fi |
Frequency: | 2412~2484 MHz |
Channel: | 1~13 |
Bandwidth: | 20/40 MHz or Auto |
Output power: | 802.11n: 23±2dBm for OFDM mode 802.11g: 25±2dBm for OFDM mode 802.11b: 27±2dBm for CCK mode |
Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
Concurrent user: | 57 users |
Software
Firmware: | EV3121 |
Computer: | Windows XP Vista 7 8/8.1 MAC OS OS X10.7+ |
