IP67 Rated Outdoor Router
Enjoy cutting-edge 4G internet speed and secured Wi-Fi network. A brief introduction about how to install and configure the outdoor 4G MIMO router. You can download the user’s manual to check details.
Installation
Before installing the outdoor router, firstly using your mobile phone, walk around and look for a location that gets a good signal. You need to prepare a prepaid SIM card and insert in the built-in standard SIM card slot. The standard SIM card is measuring 1″ long by 0.6″ wide (25×15mm). The SIM card adapter is provided with our 4G router.

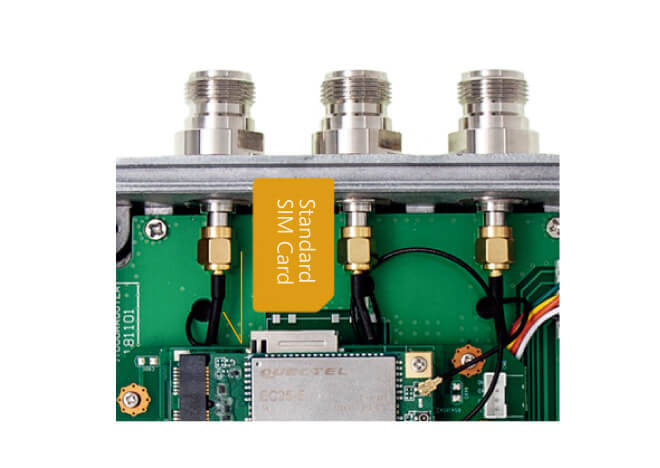

1) Insert SIM Card
Use the hex wrench to lose 4pcs of hexagon bolts and open the
metallic case.
Insert Standard SIM card into the SIM card slot. Make sure SIM card pins are facing down and notch is inside.

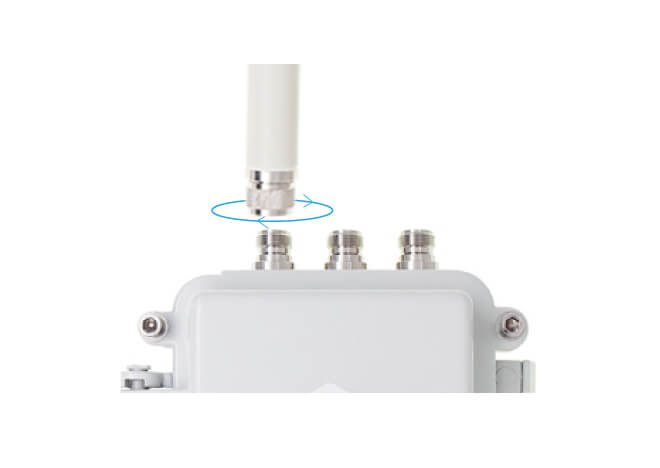

2) Install External Antennas
Install “main” 4G antenna on the left base connector, and install another 4G antenna on the right socket. WiFi antennas are on the middle positions. Twist the connector clockwisely to fix antennas on the router.

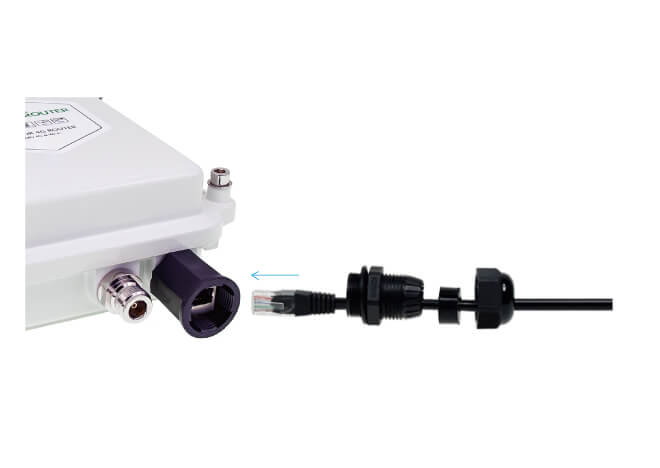

3) Connect PoE Injector
Take apart the cable gland, and through the LAN cable. Plug the RJ45 connector into the router. Screw on the barrel screw, insert rubber stopper, and crew down the cap. Connect to electric power outlet.

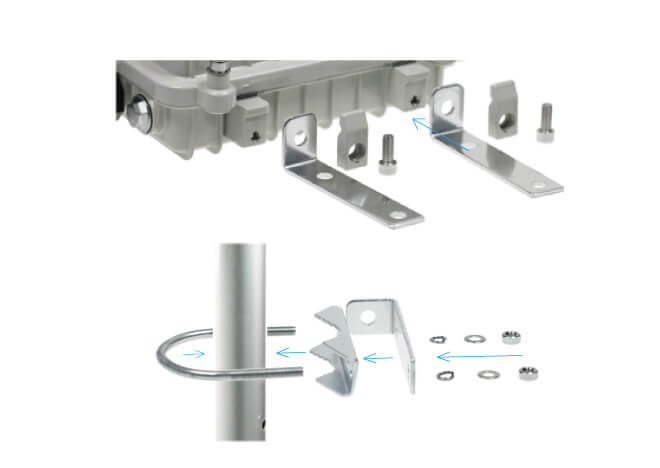

3) Install On A Pole
Clasp the pole with U-bolts and holders. Attach the L-shape brackets on the holders. Put spring washers, washers, and bolts on U-bolts then tighten the bolts.
Join Wi-Fi Network
After connected to the electrical outlet, an “Outdoor Wi-Fi” hotspot will be created within 20 seconds. Join the Wi-Fi network without password.
Login Outdoor Router
Turn on DHCP function on your device. Open a web browser and type http://192.168.30.1 in address bar. Use default admin password to log in.
