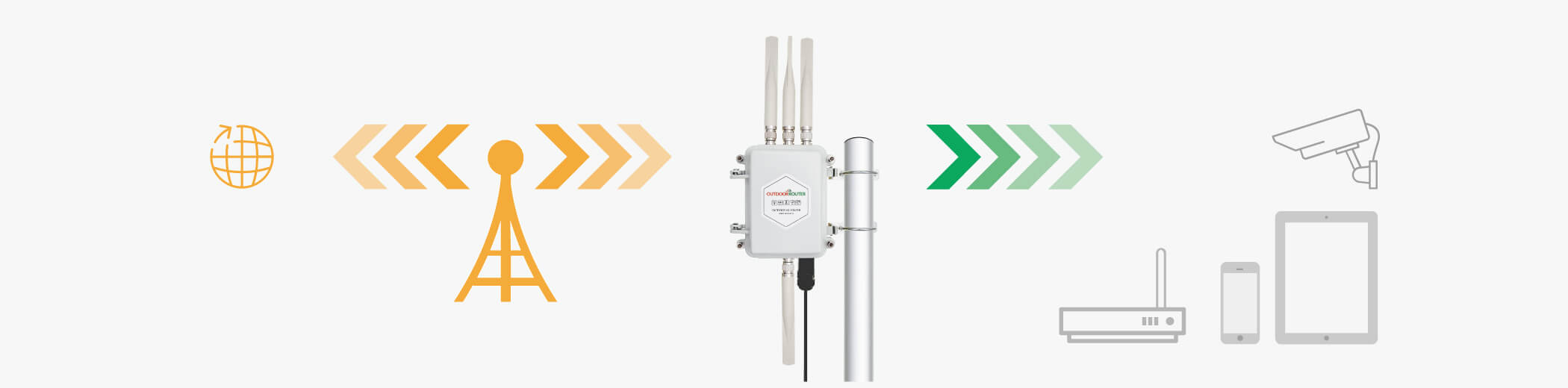

How does 4G Router Works in Outdoor

Outdoor 4G Router

Receive stronger 4G signals in Remote Area

The outdoor router is the ideal solution to connect to the internet in remote areas. It receives mobile phone signals then provide internet by Wi-Fi hotspot and LAN Ethernet connection. The outdoor router has a built-in industrial-grade mobile modem and high-gain antenna to receive a stronger mobile signal.

The outdoor router allows upgrading the 4G antenna to increase the signal reception. The default Wi-Fi function provides 300Mbps fast speed and serves up to 57 concurrent users.

Power by Ethernet LAN cable. Transmit both data and electric power with 300-feet LAN cable.

Worldwide Cellular Modems

SKU: Y4E / Y4U Y4O Y6E / Y6U / Y6O
LTE Category: CAT 4 CAT 4 CAT 6
4G FDD Bands: B1/B3/B5/B7/B8/B20
DL150 / UL50 Mbps		 B1/B2/B3/B4/B5/B7/B8/B28
DL150 / UL50 Mbps
B1/B3/B5/B7/B8/B20/B28/B32Rx
DL300 / UL50 Mbps
4G TDD Bands: B38/B40/B41
DL130 / UL30 Mbps		 B40
DL130 / UL30 Mbps		 B38/B40/B41
DL260 / UL28 Mbps
Working Area: Europe, Africa, Middle East, Korea, Thailand, India Australia, New Zealand, Brazil, Asia, Latin America
EMEA: Europe, Middle East, Africa
APAC: Asia-Pacific (Excluding Japan and CMCC) & Brazil
EC25x Cellular Modem

EMEA & APAC Standard

SKU: Y4A Y4V S6A
LTE Category: CAT 4 CAT 4 CAT 6
4G Bands: FDD LTE – B2/B4/B12
DL150 / UL50 Mbps		 FDD LTE – B4/B13
DL150 / UL50 Mbps
B1/2/3/4/5/7/8/12/13/20/25/26/29/30/B41
DL300 / UL50 Mbps
Working Area: North America North America
North America (USA and Canada)
EC25x Cellular Modem

American Standard

Stand Alone 4G Wi-Fi Wireless Router Outdoor

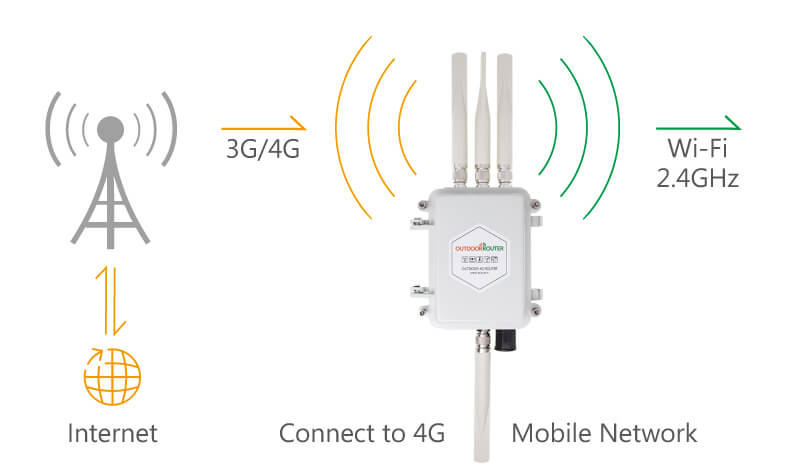

Stand Alone 4G Wireless Wi-Fi Router

Build-in industrial-grade mobile modem, the outdoor 4G router bring secure, high-performance cellular connectivity.

  1. Firstly insert a SIM card and connect the outdoor router to PoE injector by LAN cable. The outdoor router will start to create a Wi-Fi hotspot.
  2. The outdoor router captures mobile network signals via the full-band 4G antennas. It supports mobile networks of 4G FDD-LTE, 4G TDD-LTE, 3G WCDMA/HSPA+, 3G TD-SCDMA, and 2G GSM/GPRS/EDGE.
  3. Transmit mobile phone network to Wi-Fi signal, and boost the Wi-Fi signal to up to 27dBm. Then broadcast boosted Wi-Fi signals by high gain 2.4G Wi-Fi antenna.
  4. The router supports Ethernet connection. You can connect your computer or indoor router to the PoE power adapter with LAN cable.

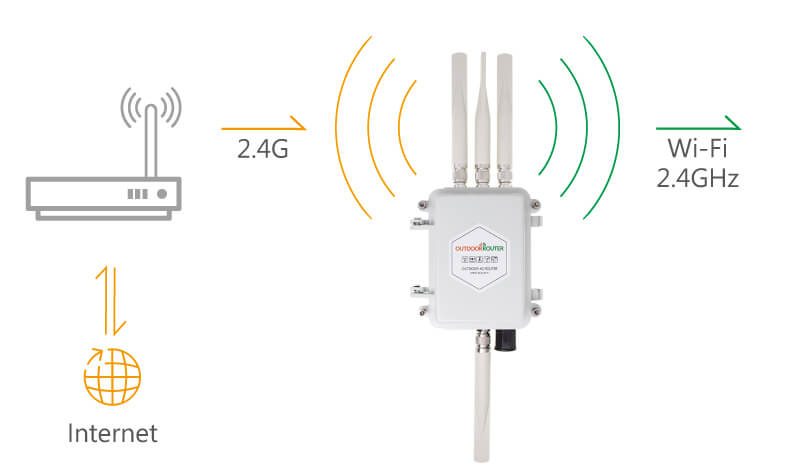

Stand Alone 4G Modem to WiFi Hotspot

Build-in advanced Wi-Fi extender chip, the outdoor Wi-Fi router can extend the coverage area of existing Wi-Fi network. The Wi-Fi extender can effectively expand the Wi-Fi coverage to outdoor areas.

  1. Install the router in a location that can access the existing Wi-Fi network, and connect to PoE power supply.
  2. Log in the control panel of the router, detect and connect to the existing Wi-Fi network.
  3. The 4G outdoor router will boost the received Wi-Fi signal and transmit the boosted Wi-Fi signals through the high-gain Wi-Fi antenna.

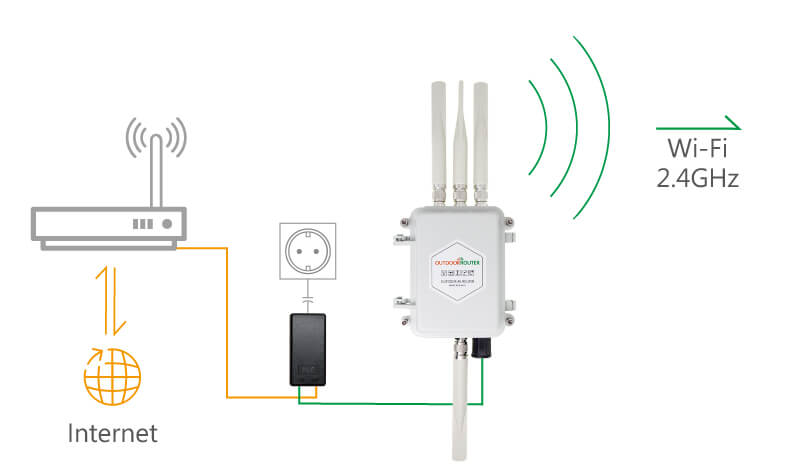

Stand Alone 4G Failover WiFi Repeater

The outdoor router can connect to internet router by LAN cable and work as an access point (AP). On the AP mode, it boost internet signal by creating a wireless hotspot with 27dBm power. The Router Booster model could expand internet access ability to outdoor areas and extend the Wi-Fi coverage than regular mini power Wi-Fi CPE/AP.

  1. Install the router in a location to cover the defined area need to access the wireless hotspot created by the outdoor router.  **No need to insert SIM card.
  2. Connect to PoE port on the injector by LAN cable and turn on the power.
  3. Connect LAN port on PoE injector to router/AP with LAN cable. The outdoor router will start to boost the received internet signal and provide internet service on its own wireless hotspot.
Stand Alone 4G Internet Router AP Mode

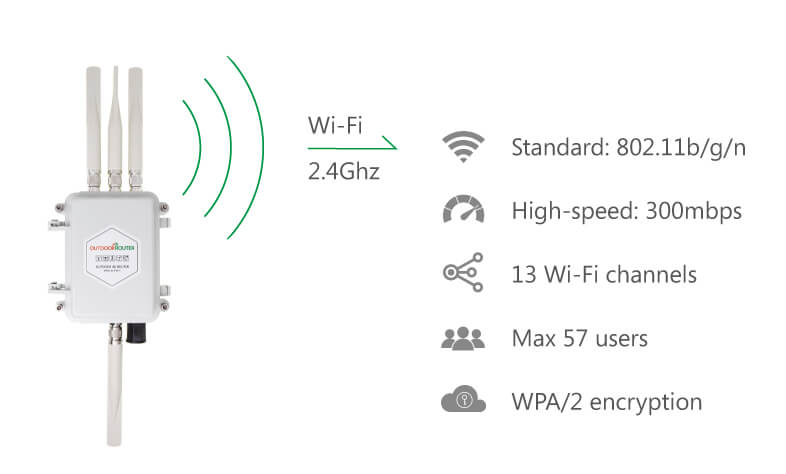

Comply Wi-Fi standards 802.11b/g/n, the outdoor router provide 13 Wi-Fi channels, with high-speed wireless transmission up to 300mbps. It supports max 57 users at the sametime.

27dBm Wi-Fi Booster

Built-in powerful Wi-Fi booster chip, the outdoor Wi-Fi router can output up to 27dBm power. With the default high-gain antenna the router can cover 150~300 yards radius in the open space.

Wireless Encryption

The outdoor router allows you to encrypt the Wi-Fi network with WPA-PSK, WPA2-PSK, or WPA2 AES-PSK.

Outdoor 4G Router with WiFi Booster

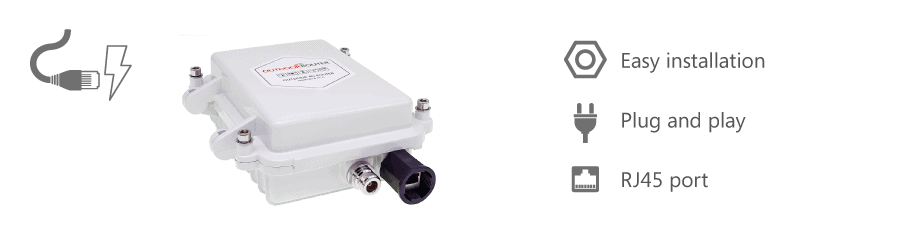

PoE+ Power Supply

Integrated IEEE802.3af/at power over Ethernet (PoE) standard, the outdoor router provides an easy installation. Power and data will travel down the same Ethernet cable, no need to connect the router to an electrical outlet.

PoE Powered Outdoor 4G Router with LAN Cable

A 30-feet outdoor class LAN cable is included in the package. Support max 300-feet LAN cable

Support PoE extender to increase the LAN cable length.

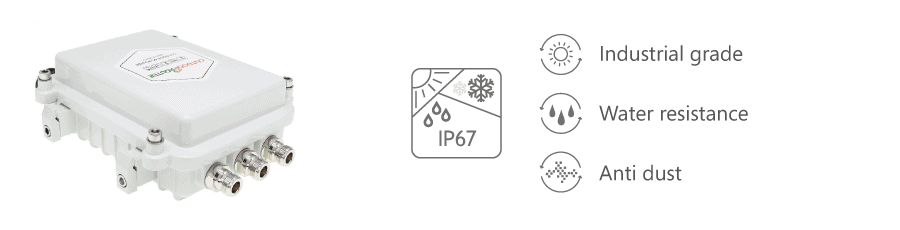

IP67 Outdoor Design

The industrial-grade outdoor router can stand up to dirt, harmful ingress of water, humidity and extreme temperatures for years of dependable operation. It’s the ideal solution for industries, business, remote locations, residences, rural areas and the underserved places.

The rugged metallic case provided IP67 rated protection from dust and capable of withstanding water immersion above 3-feet for 30 minutes.

The IP68 rated cable gland provided even safer protection to the LAN cable connection.

IP67 Rated 4G Outdoor Router
EZR30 IP67 Applications

CASE STUDIES

Outdoor Mobile 4G Router

Need Wi-Fi in Remote Areas? Require Internet for outdoor events?

It's time to deploy a 4G Outdoor WiFi Router in the countryside, coast, boat, caravan, campus, campsite, and remote area for the outdoor events!
