Canada 4G LTE Router | Outdoor WiFi
Insert a 4G SIM card to receive the best outdoor cellular signals and get fast Wi-Fi & Ethernet in rural areas
4G LTE Router Outdoor WiFi Cellular Modem CAT4
C$494
IP67 waterproof anti-corrosion enclosure!
The CAT4 LTE modem in Canada 4G cellular router provides a rated ≦150mbps download speed. It receives the best outdoor cellular signals and provides fast Wi-Fi internet outside.
✧ Canadian CAT4 4G LTE modem inside. Dual SIM card slot.
✧ Dual SIM card slot and external 4G Wi-Fi antennas.
✧ Standalone outside Wi-Fi hotspot covers 150~300 yards.
Outdoor Canada 4G Router LTE Modem
i. Built-in CAT4 4G LTE modem, the outdoor 4G LTE router connects to widely distributed cellular networks outdoors and gets rated max 150Mbps download speed.
Canadian CAT4 LTE modem inside. Support cellular providers including Bell, Rogers, Telus, Fido, etc. The flexible 4G router is unlocked to use any SIM card you have. * Make sure your SIM card is unlocked and activated!
The dual-SIM slot provides a backup 4G internet connection. Advanced mobile data & PPP protocols and auto APN are integrated into the 4G router firmware.
Rugged 4G LTE Router for Demanding Applications
Remote & Rural Area
Receive stronger outdoor signals. Get rid of the landline. Enjoy the fast-speed mobile internet.
Outdoor Events
Use a SIM card to set up temporary internet for outdoor events, campsites, caravans, boats, etc.
Harsh Environments
Provides rugged internet for industrial applications, water treatment, and construction sites.
Long-range Outdoor 4G Wi-Fi Coverage
Standalone MIMO Wi-Fi hotspot on 2.4GHz driven by 1-watt booster, the Wi-Fi signal covers 150~300 yards in an open space. Connect up to 57 Wi-Fi-enabled devices to the internet, such as cameras, doorbells, etc. It also supports the Wi-Fi relay.
PoE Power & LAN Ethernet
PoE Power System -- Comply with 802.3af/at PoE standard, the outdoor 4G router uses a LAN cable to transmit both DC power and Ethernet data. It supports a max 50-meter LAN cable. You can also power it up with a 12V DC power adapter.
LAN Ethernet Connection -- Connect the network switch, second router, or computer to the LAN port on the PoE injector to extend the 4G internet to an indoor area.
High-gain External Antennas
Include wideband LTE antennas and omnidirectional Wi-Fi antennas. These external antennas are upgraded with UV coating and hexagon SS connectors. The robust N-female connectors support upgrades to directional antennas to improve RF signal reception.
IP67 Waterproof Aluminum Enclosure
Diecast from anti-corrosion ADC12 aluminum by 100-ton pressure. The outdoor 4G-LTE router has the unique & modular designed enclosure with a weather-proof coating.
The durable enclosure provides waterproof protection in demanding environments. A set of o-rings seals and gaskets protects the 4G router against water and dust.
The outdoor enclosure has effective heatsink fins with rain diverters. The 4G router works in the temperature range of -40° ~ +80° celsius.
Integrate lighting protection of common 6KV & differential 1.5KV. The breather valve prevents rupturing or imploding.
Flexible Mounting System
Easily install the router on a pole or wall surface with the robust bracket system. It offers flexible solutions to install in vertical or horizontal directions.
Powerful & Open-sourced 4G Router Firmware
Dedicated 4G Router Firmware
Outdoor 4G router operates as a plug-and-plug Linux router for internet freedom. It's easy to use and allows to change of advanced configurations.
The 4G router has integrated modem drivers, mobile protocols, and APN parameters. It also supports mmcli and AT command sets.
The keepalive design brings stable mobile internet connections. Automatically redial modem, reboot router, and switch SIM cards.
Safe & Open-sourced Firmware
Access and control the 4G router with a web browser. It provides full authority to access SSH FTP Telnet, software center, and file system.
It has built QoS, firewall, DNS filter, and multiple-WAN. You can easily control the inbound and outbound traffics.
Supports OpenVPN and WireGuard. You can remotely access it via the Traversal-Cloud. TR069 is available on demand.
What Will You Get in the Package
The package includes the below contents along with a 15-day money-back warranty and a 1-year quality guarantee.
You will also receive our zealous customer service and lifetime technical support.

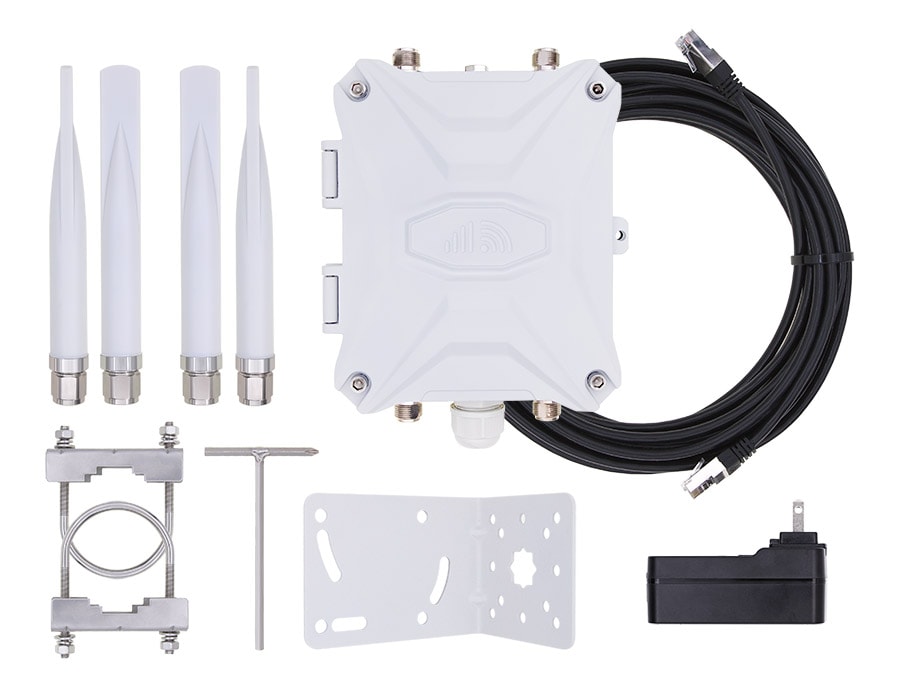

Package Contents
1 x Canada 4G LTE cellular router CAT4
4 x Omni Antenna
1 x 10-meter outdoor LAN Cable
1 x 48V PoE Injector
1 x L-Shape Bracket
1 x T-Shape Wrench
1 x Mounting Kit
Be the first to review “4G LTE Router Outdoor WiFi Cellular Modem CAT4”
You must be logged in to post a review.
EZR33L - Outdoor 4G Router
Quick Guidance Manual

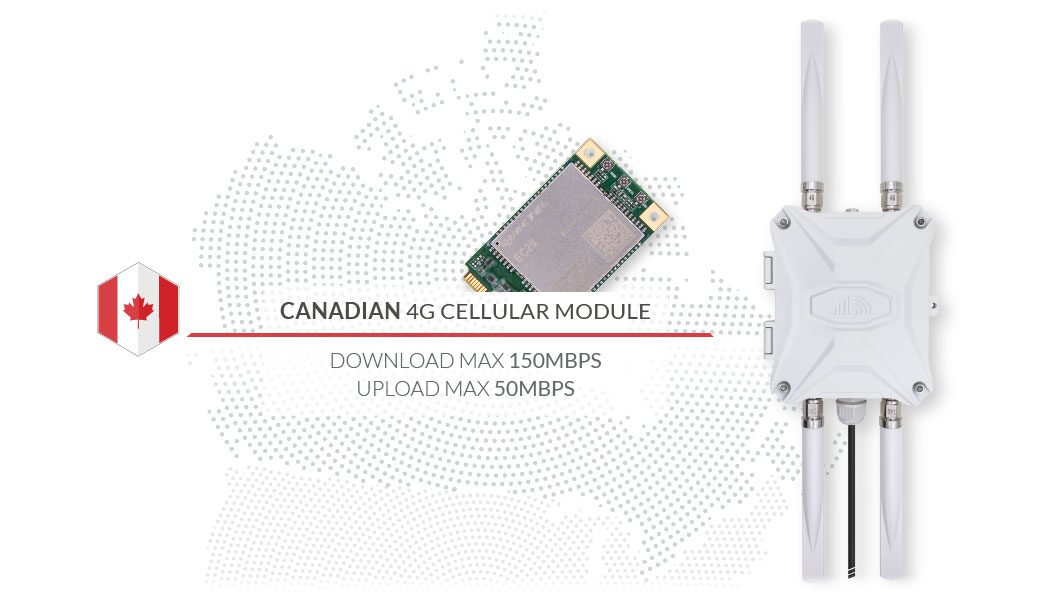

Cat4 Canadian Cellular LTE Modem
| LTE Category: | CAT.4 (3GPP E-UTRA Release 10) |
| 4G FDD Bands: | B2/B4/B5/B12/B13/ B14/B66/B71 Download max 150Mbps / Upload max 50Mbps |
| 3G Bands: | B2/B4/B5 DC-HSDPA: DL Max 42Mbps HSUPA: UL Max 5.76Mbps WCDMA: DL 384Kbps / UL 384Kbps |
| Bandwidth: | 1.4/3/5/10/15/20MHz |
| Support Antenna: | DL MIMO, supports Rx-diversity (Except LTE B2) |
| Temperature: | Working: -40°C ~ +80°C |
| Working Area: | North America |
| Certification: | GCF / FCC / IC / PTCRB AT&T / Verizon /T-Mobile / Telus /Bell |
* Make sure your SIM card is unlocked and activated! *
Support cellular networks in North America, including Canada, USA, Mexico, and most of the Latin American countries.
EZEN3X Motherboard
| CPU: | Qualcomm Atheros QCA9531 |
| Frequency: | 650MHz |
| Memory: | DDR2 RAM 128MB |
| Flash: | SPI FLASH 16MB |
| SIM card slot: | Double Nano-SIM Cards (12.3×8.8mm) |
| WAN/LAN port: | 10/100Mbps on PoE adapter |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Temperature: | Working: -40 to +80°C Storage: -50 to +90°C |
| Surge Protection: | Common-mode 6 kV Differential mode 1.5 kV |
| Humidity: | 10%~90% RH |
| Measurement: | Router 180.7x160.8x53mm |
| Package: | 307x249x130mm / 2405gram |
Antennas
| 2 x 4G LTE antenna: | Frequency: 698~960 / 1710~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
| 2 x Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 5dBi / V.S.W.R.: ≤ 2.0 |
| Measurement: | Φ22×180mm |
| Connector: | N Male |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
Wi-Fi Network
| Wi-Fi standards: | IEEE 802.11 a/b/g/n IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R MIMO (multiple-input multiple-output) |
| Transmission rate: | 300Mbps |
| Frequency: | 2.4GHz - 2412~2484 MHz |
| Channel: | 1~13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11b: 27±2dBm 802.11g: 25±2dBm 802.11n: 23±2dBm |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 57 users |
Power Sources
| PoE Injector: | Input: 110~240VAC 50/60Hz Output: 48Volt 0.5Amps |
| LAN Cable: | 10-meter outdoor grade LAN cable included. |
| PoE Wiring: |  Ethernet 1, 2, 3, 6 |
| DC Socket: | Wide range DC 9~48Volt |
4G Router Firmware
Note: Below function chart is base on firmware version EV3124.
| Mobile Protocol: | Mobile Data and 4G-PPP |
| Command Sets: | MMCLI & AT commands |
| Mobile Status: | SIM card, Connection status, mobile operator Signal strength (Cell ID, RSRQ, RSSI, RSRP & SNR) IMEI, IP address, and TX/RX data flow |
| Band Management: | Network lock between 2G 3G and 4G 3G and LTE band lock on web interface |
| APN: | Auto APN included Custom APN parameters available |
| Mobile Roaming: | On/off as you set |
| SIM Switching: | Primary SIM1 by default Choose SIM card or set to auto switch SIM cards |
| Accessibility: | Web GUI interface, SSH terminal, Telnet, and FTP/SFTP |
| LAN/WAN Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
| Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
| Traffic Control: | QoS, SQM, and load balancing |
| Firewall: | Open new port, port forwarding, and custom rules |
| Diagnostics: | Ping, Traceroute, Nslookup |
| VPN Tunnel: | OpenVPN (v2.5.3) and WireGuard VPN |
| Remote Control: | Free traversal cloud * TR069 available on demand |
