4G Cellular Router Outdoor Hotspot
Outdoor Router with 3G/4G CAT4 Cellular Modem and Dual SIM Slots
Canada Modem – Outdoor 4G Hotspot External Antennas
Canada 4G Outdoor Router CAT4 External Antenna
C$469
The weather-proof 4G outdoor router withstands extreme weather in harsh environments. The built-in CAT4 modem supports 3G and 4G American standard cellular networks. It’s unlocked to take Canadian carrier’s SIM cards.
- Reliable 4G cellular Internet for rural & outdoor events
- Unlocked American CAT4 cellular modem 3G/4G bands
- Standalone 4G networking router with WiFi and Ethernet
- Rugged router with lighting and IP67 waterproof protection
CAT4 Cellular Modem
Mobile Modem for Canada
Dual SIM Slots for Failover and Redundancy
Unlocked – Work with Major Cellular Providers
Outdoor 4G WiFi Hotspot
4G Cellular Internet – Long-range WiFi Coverage
External Antennas – Best Outside Cellular Signals
Avoid Indoor Barriers and RF Signal Interferences
IP67 Waterproof 4G Router
Rugged IP67 Enclosure with Lighting Protection
Reliable 4G Gateway Withstand Extreme Weather
Flexible PoE & DC Power
Power by 48V PoE Injector (included)
DC Socket Accepts Input 9~48VDC
4G Cellular Router for Demanding Conditions
With IP67 waterproofing, extreme temperature hardening, and surge protection, the 4G outdoor router provides reliable 4G internet in harsh environments facing rain, snow, heat waves, or thunderstorms. The rugged hardware makes it an ideal 4G internet gateway for smart cities, transportation, rural area, and industrial applications.
Remote & Rural Area
Receiving stronger outdoor signals and faster 4G cellular internet. Get rid of slow landlines.
Outdoor Events
Use a SIM card to set up temporary internet for boats, vehicles, campsites, and outdoor events.
Harsh Deployments
Deploy reliable 4G WiFi internet for shops, IoT fields, and industrial applications.

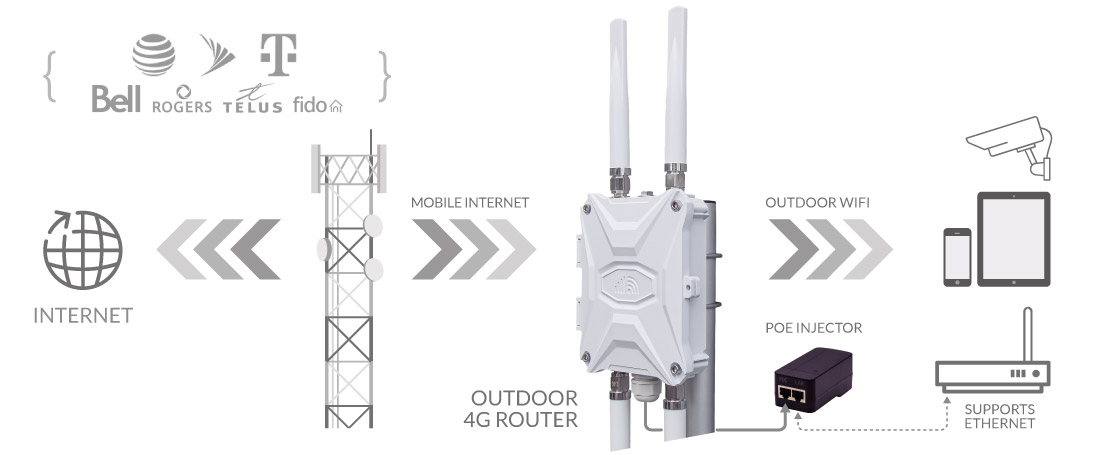

How Does 4G Outdoor Router Work?
The outdoor router is a standalone 4G WiFi router with a CAT4 cellular modem, dual SIM card slots, WiFi hotspots, and an Ethernet port.
After inserting a workable SIM card, the outdoor router connects to the 3G or 4G networks and accesses the cellular internet. The CAT4 modem provides a maximum 150Mbps download speed.
Then, the outdoor router provides 4G cellular internet to wireless devices like smartphones, tablets, and home appliances linked to its WiFi hotspots. It also passes through the internet on wired connections such as computers, switches, or indoor routers connected to the PoE injector.
Outdoor 4G WiFi Rural Internet
Directly receiving the best outside 3G/4G signals with the included external antennas, the 4G outdoor router bypasses structural barriers, eliminates signal interferences, and avoids speed attenuations. It’s the ideal 4G cellular internet gateway for rural areas and signal-weak locations, especially when a landline is unavailable or has a slow speed.
Rugged 4G Router IP67 Waterproof
Withstand extreme weather: Deploy reliable 4G WiFi connectivity in challenging conditions.

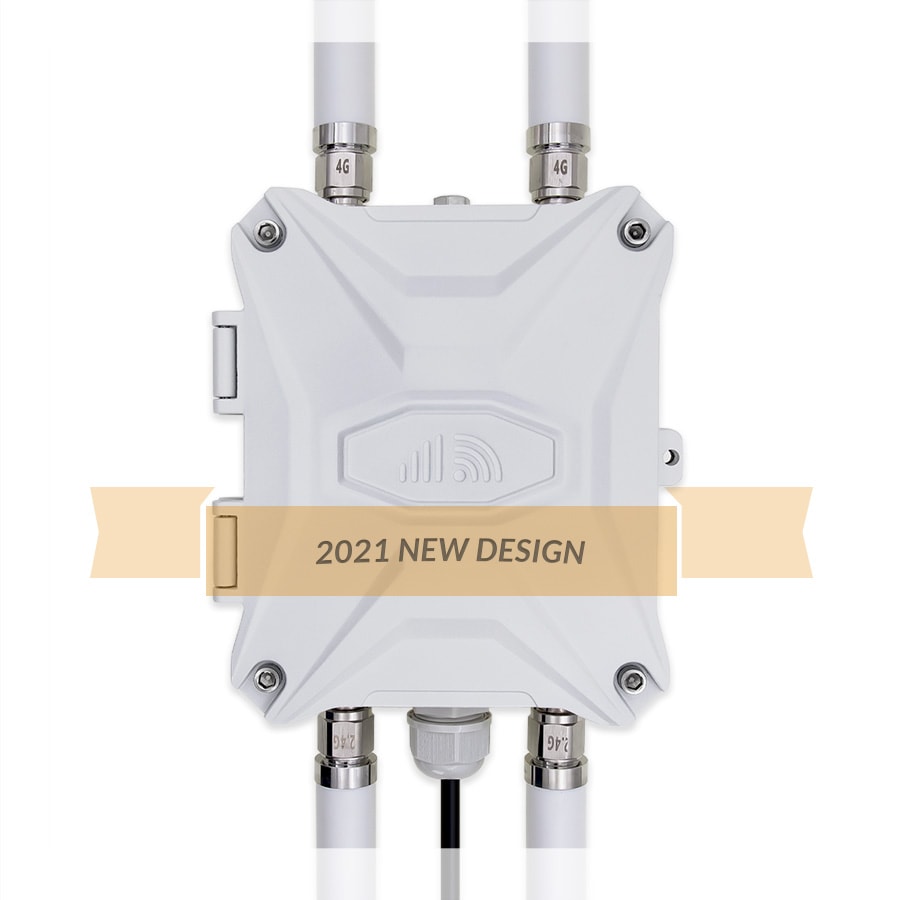

- IP67 Waterproof Enclosure – Made of anti-corrosion aluminum with outdoor coating, keeping internal electronics protected and preventing water and dust ingress.
- Across Extreme Temperature -40°C to +80°C. External fins for effective heat dissipation.
- Equipped Lighting Protection of (industrial-grade) common 6KV and differential 1.5KV.
Flexible powering options ensure seamless integration into diverse environments and power infrastructures.
48V PoE Injector
Complies with 802.3af & at standard Power over Ethernet (PoE), which transmits DC power and data over Ethernet cable, it can be powered directly from included PoE injectors or external PoE switches up to 50 meters. For longer cable runs, multiple PoE extenders can be utilized.
Alternative DC Power
DC power socket accepts 9~48V voltage to work with AC-DC adapters and 12V battery sources. It accommodates reliable powering through local AC outlets, vehicles, solar power systems, and more.
Mobile SIM Router Firmware System
Optimized firmware system delivers reliable mobile internet connection and seamless plug-and-play experience. Contact us to customize firmware and meet specific needs. An online demo is available upon request.
Integrated 4G modem drivers and multiple mobile protocols.
Supports dual SIM cards, band lock, and 4G IP passthrough.
Exclusive mobile watchdog automatically tracks and keeps mobile internet alive. Free Traversal Cloud for remote access.
Supports WiFi relay, guest WiFi, WiFi schedule, custom firewall, multiple-WAN, and OpenVPN IPSec WireGuard VPN tunnels.

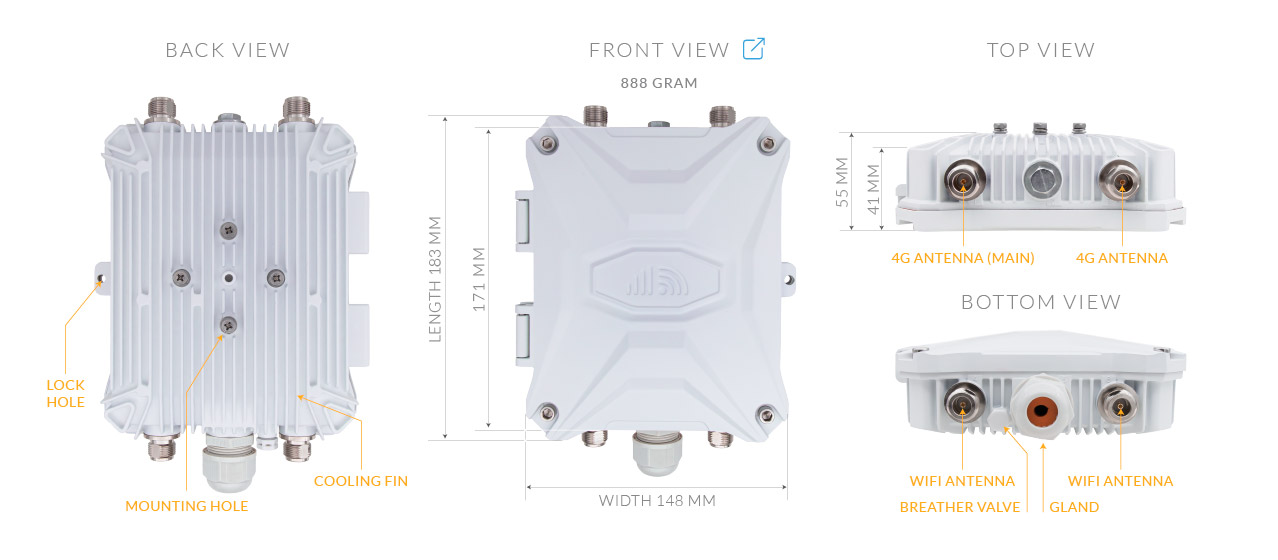

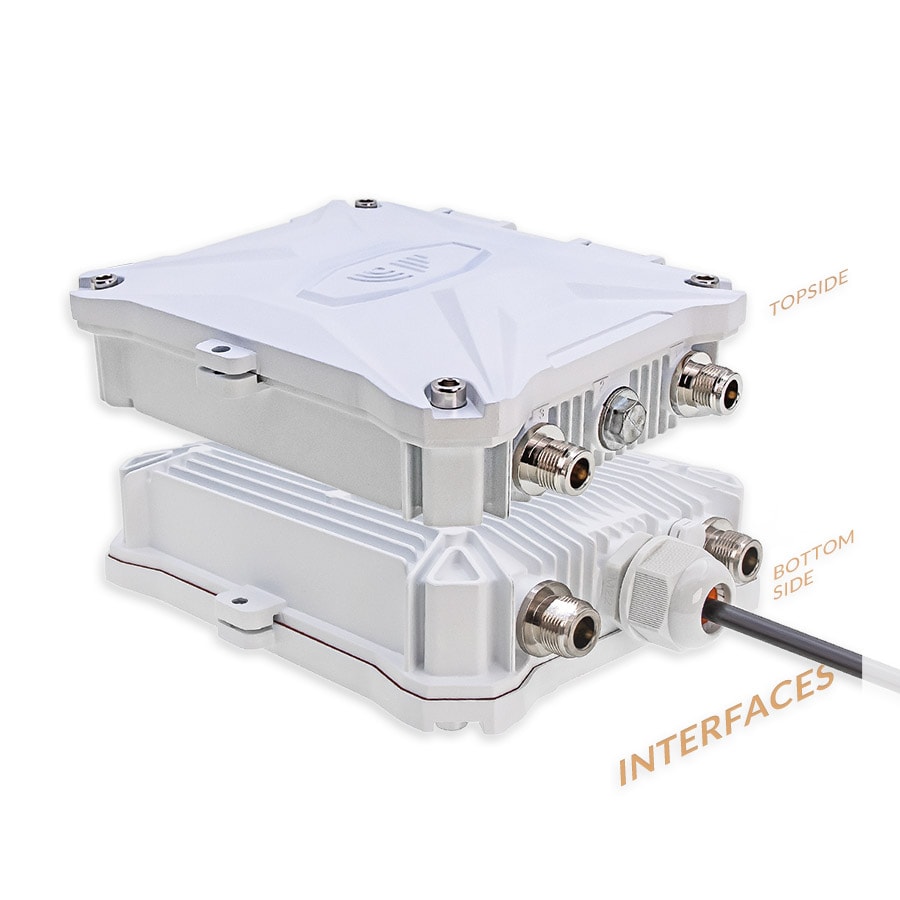

Hardware Overview on Outdoor 4G Router
Integrates durable construction with modular flexibility to bring robust wired and wireless connections for stable operation under extreme conditions. The modular architecture allows flexible installations and easy external antenna upgrades across various use cases.
Shipment Package & Services
We aim to deliver robust hardware and provide an exceptional customer experience before and after purchase.
All hardware enjoys a 15-day money-back guarantee, and you can evaluate performance risk-free. It is backed by a one-year quality warranty covering defects. You can access our dedicated customer support team for the product’s life. Our experts can assist with setup, configuration, troubleshooting, or integration.

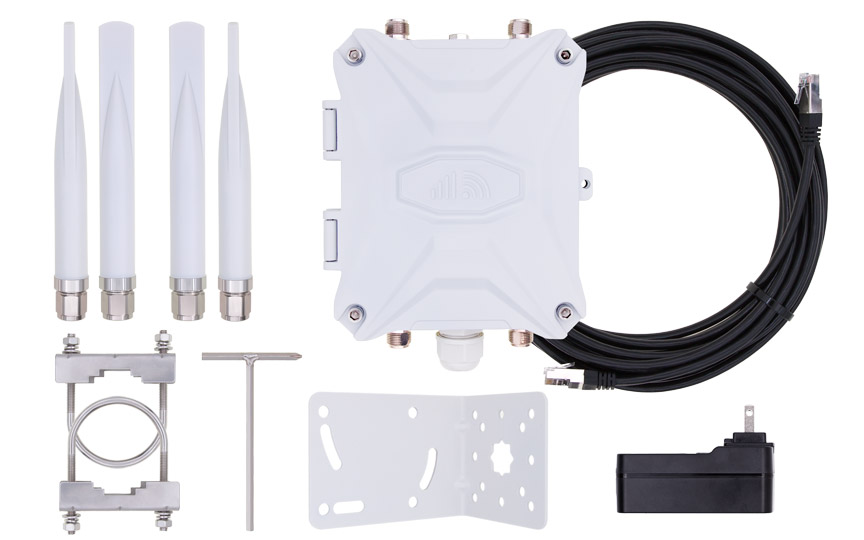

Package Contents

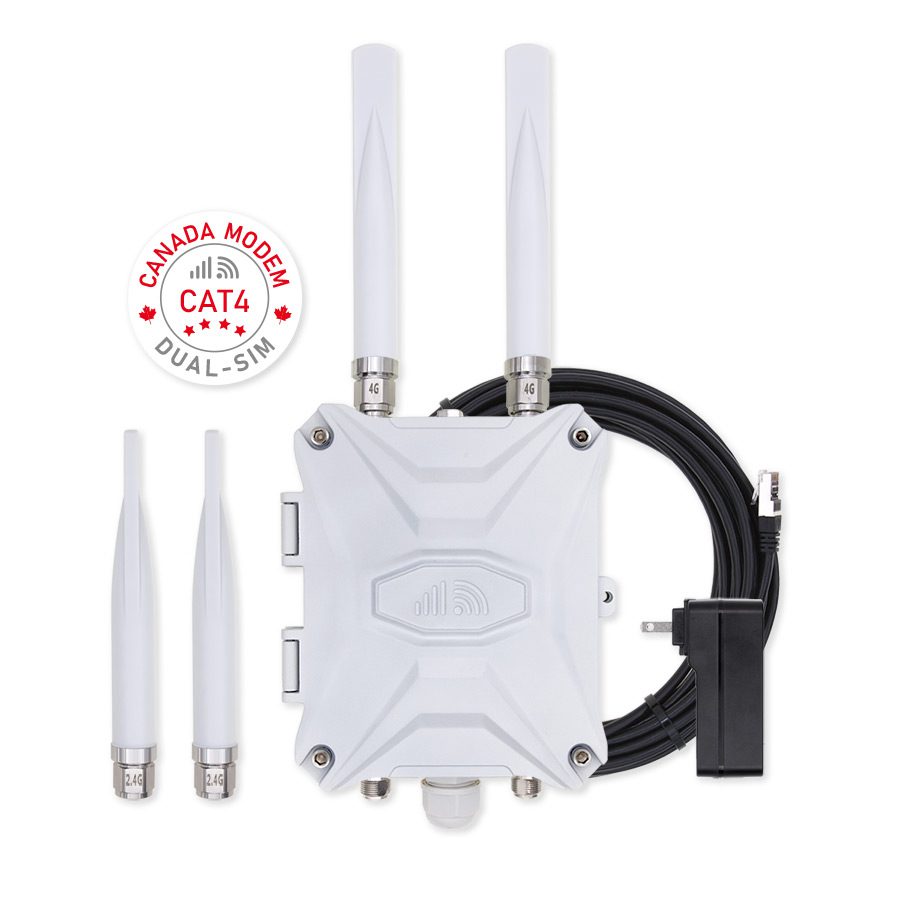

1 x 4G Outdoor Router CAT4
2 x Omni 4G Antenna
2 x Omni WiFi Antenna
1 x 10-meter LAN Cable
1 x 48V PoE Injector

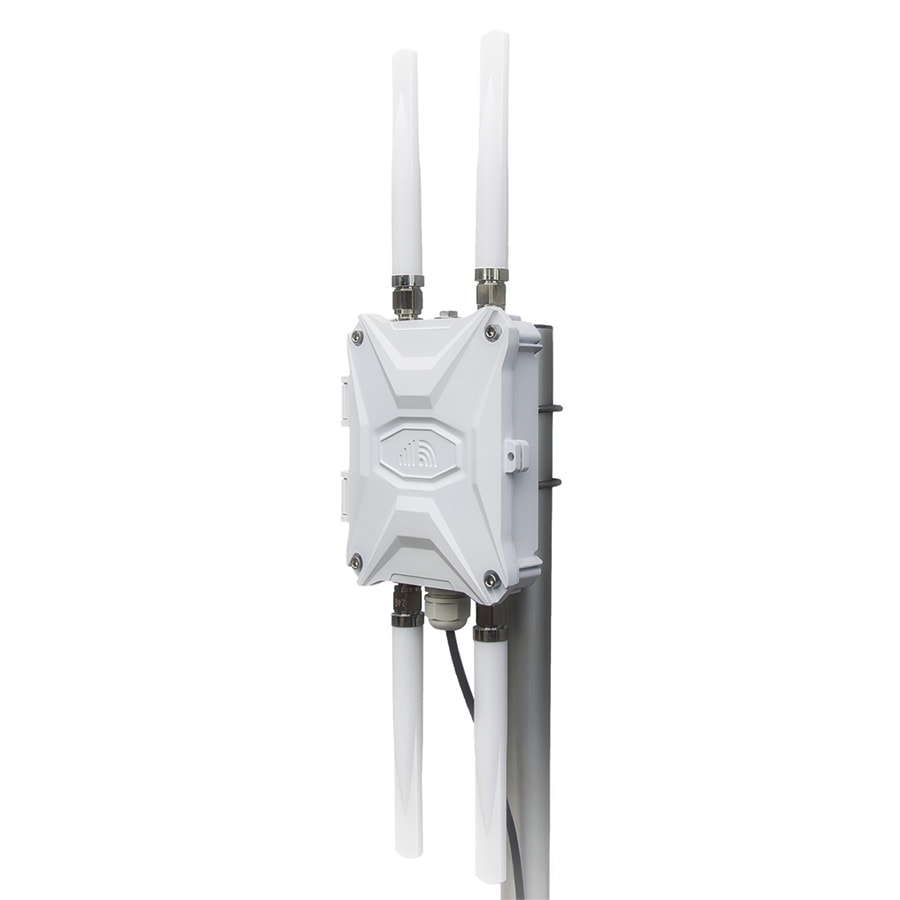

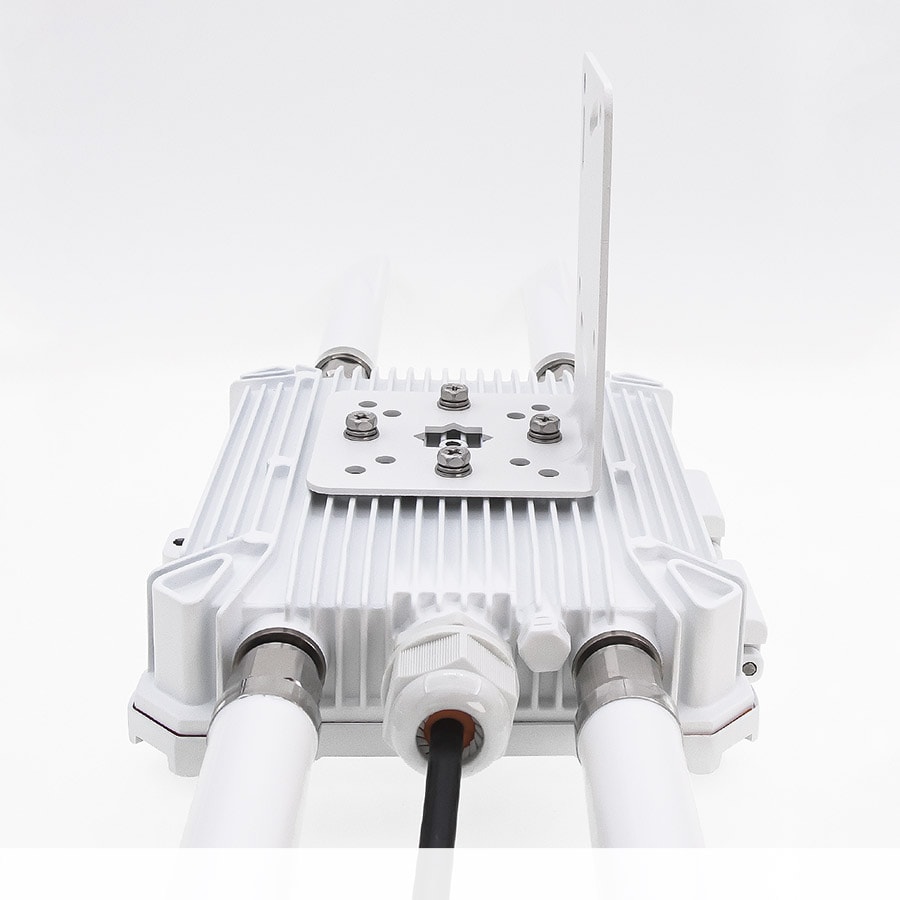

1 x Mounting Set & Tool
Be the first to review “Canada 4G Outdoor Router CAT4 External Antenna”
You must be logged in to post a review.
Cat4 Canadian Cellular LTE Modem
| LTE Category: | CAT.4 (3GPP E-UTRA Release 10) |
| 4G FDD Bands: | B2/B4/B5/B12/B13/ B14/B66/B71 Download max 150Mbps / Upload max 50Mbps |
| 3G Bands: | B2/B4/B5 DC-HSDPA: DL Max 42Mbps HSUPA: UL Max 5.76Mbps WCDMA: DL 384Kbps / UL 384Kbps |
| Bandwidth: | 1.4/3/5/10/15/20MHz |
| Support Antenna: | DL MIMO, supports Rx-diversity (Except LTE B2) |
| Temperature: | Working: -40°C ~ +80°C |
| Working Area: | North America |
| Certification: | GCF / FCC / IC / PTCRB AT&T / Verizon /T-Mobile / Telus /Bell |
* Make sure your SIM card is unlocked and activated! *
Support cellular networks in North America, including Canada, USA, Mexico, and most of the Latin American countries.
EZEN3X-V3 - Motherboard
| CPU: | Qualcomm Atheros QC9531 |
| Frequency: | 650MHz |
| Memory: | DDR2 RAM 128MB |
| Flash: | SPI FLASH 16MB |
| SIM card slot: | Double Nano-SIM Cards (12.3×8.8 mm) |
| WAN/LAN port: | 10/100 Mbps |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Surge Protection: | Common-mode 6 kV Differential mode 1.5 kV |
| Temperature: | Working: -40 to +80 °C Storage: -50 to +90 °C |
| Humidity: | 10% ~ 95% RH |
| Measurement: | Router 148x183x55 mm |
| Package: | 303x249x129 mm / 2400 gram |
Wi-Fi Hotspot
| Wi-Fi standards: | IEEE 802.11 a/b/g/n IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R MIMO (multiple-input multiple-output) |
| Transmission rate: | 300Mbps |
| Frequency: | 2.4GHz - 2412 ~ 2484 MHz |
| Channel: | 1 ~ 13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11b: 27±2dBm 802.11g: 25±2dBm 802.11n: 23±2dBm |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 57 users |
4G & WiFi Antennas
| 2 x 4G LTE antenna: | Frequency: 698~960 / 1710~2170 / 2300~2700MHz Peak Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
| 2 x Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 4~5dBi / V.S.W.R.: ≤ 2.0 |
| Measurement: | Ø23 x 181 mm |
| Material: | ABS |
| Connector: | N Male |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
PoE Injector
| Input: | AC 110 ~ 240 Volt 50/60 Hz |
| Output: | 48 Volt 0.5 Amps |
| PoE Wiring: | Ethernet 1, 2, 3, 6 DC+ 4, 5 and DC- 7, 8 |
| AC Plug: | EU/GB/US/AU standard AC plugs Ship depends on the destination |
| LAN Cable: | 10-meter outdoor-grade Ethernet cable included. Supports max 50 meters. |
Power Supply Options
| DC Socket: | Accepts a wide range of 9~48V DC power input AC/DC power adapter is not included |
| PoE WAN & PoE LAN Ports: |
48~52V PoE from 802.3af/at compliant power sources PoE injector is included, as above |
4G Router Firmware Features
A brief overview of the features and functions in the 4G router firmware, based on the version EV3143.
| Mobile Protocol: | Mobile Data, QMI, and PPP |
| Command Sets: | MMCLI, QMI, and AT commands |
| Mobile Status: | SIM card, Connection status, mobile operator Signal strength (RSRQ, RSSI, RSRP & SNR) IMEI, IP address, and TX/RX data flow |
| Band Management: | Network lock between 2G 3G and 4G 3G and LTE band lock on web interface |
| APN: | Auto APN included Custom APN parameters available |
| Mobile Roaming: | On/off as you set |
| SIM Switching: | Primary SIM1 by default Choose SIM card or set to auto switch SIM cards |
| Accessibility: | Web GUI interface, SSH terminal, and FTP/SFTP |
| LAN/WAN Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
| Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
| Traffic Control: | QoS, SQM, and Multi-WAN load balancing |
| Firewall: | New port, port forwarding, and custom rules |
| Diagnostics: | Ping, Traceroute, Nslookup |
| VPN Tunnel: | OpenVPN client and WireGuard |
| Remote Control: | Free traversal cloud * TR069 available on demand |
