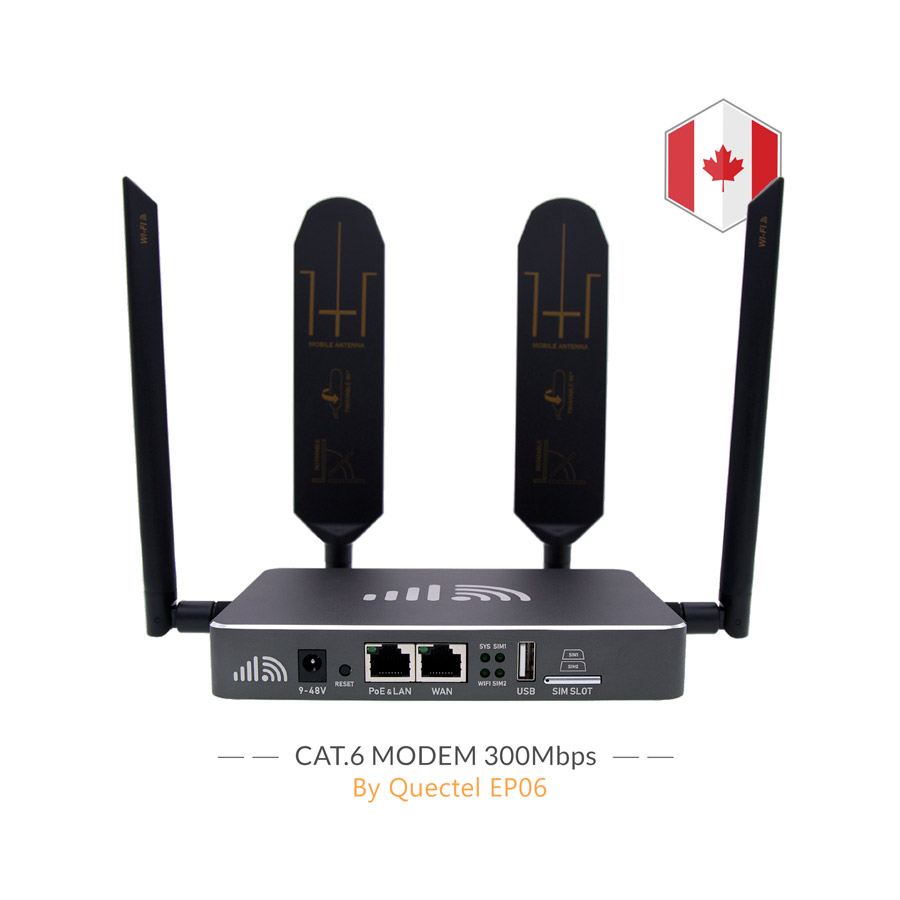

CAT6 4G LTE Cellular Router WiFi Modem SIM Slot
C$306
The 4G cellular router has the CAT6 modem to connect to Canadian 3G/4G cellular networks. It supports unlocked nano SIM cards.
The max download speed of the CAT6 LTE-Advanced modem is 300Mbps. Include innovative high-gain paddle 4G antennas. Ideal for providing internet in homes, offices, shops, restaurants, caravans, and industrial applications.
The 4G cellular router comes with powerful firmware and supported multiple mobile protocols, OpenVPN, SSH, etc. Connect to up to 57 devices with LAN Ethernet and Wi-Fi in 100~200 yards.
7 in stock
CAT6 4G LTE Cellular Router with SIM Slot
Canadian Standard 4G Cellular Router LTE-Advanced CAT6 Modem Dual SIM Slot
4G LTE-Advanced Modem
CAT6 modem for Canada cellular networks
Dual SIM slots for Nano SIM cards
Twistable high-gain 4G LTE Antenna
Long-range Wi-Fi Hotspot
100~200 yards powerful Wi-Fi signal
Up to 27dBm (1-Watt) 2.4GHz Wi-Fi boosters
Replaceable SMA standard Wi-Fi antennas

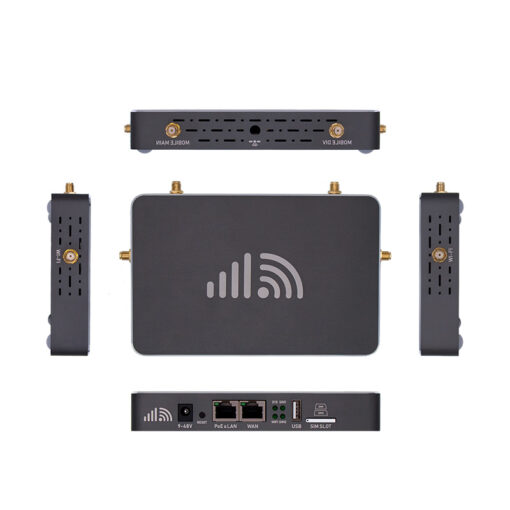

4G Backup & WAN Connections
Control priority of backup Internet connections
Accepts input WAN & output LAN Ethernet
Access router remotely from Traversal Cloud
Industrial-grade Rugged Router
Built-in 6KV 1.5KV lighting protection module
Against extreme weather -40°C ~ +80°C
Wide-range power source 48V PoE & 9~48V DC
Canadian CAT6 LTE-A Modem
Supports Canada 2G 3G 4G cellular networks.
CAT6 LTE-Advanced cellular module – max 300Mbps download speed.

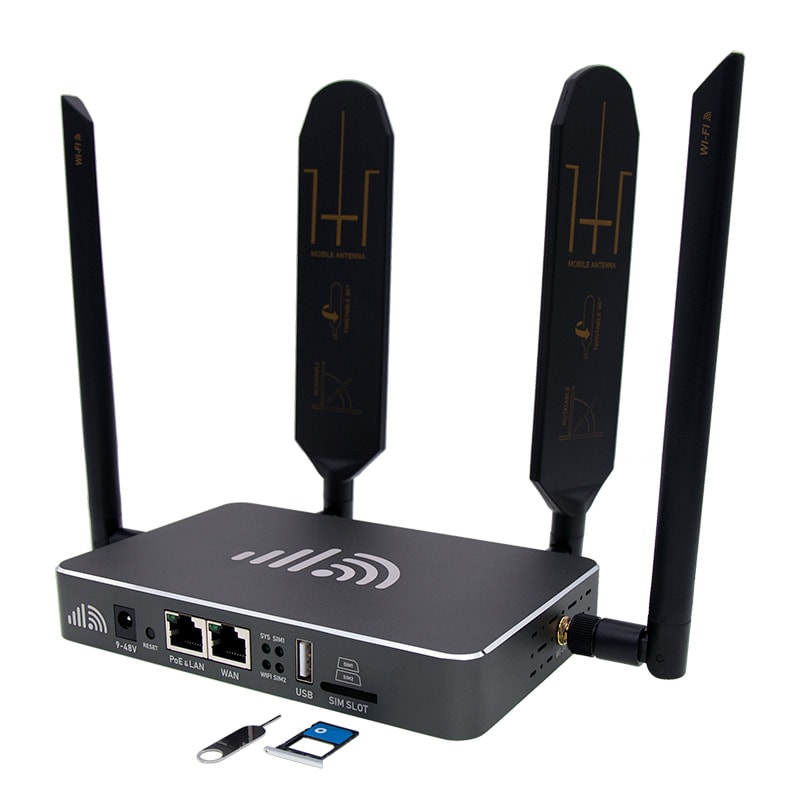

Dual Nano SIM card slot. One of the SIM cards is for backup.
Built-in multiple mobile protocols support custom APN settings.

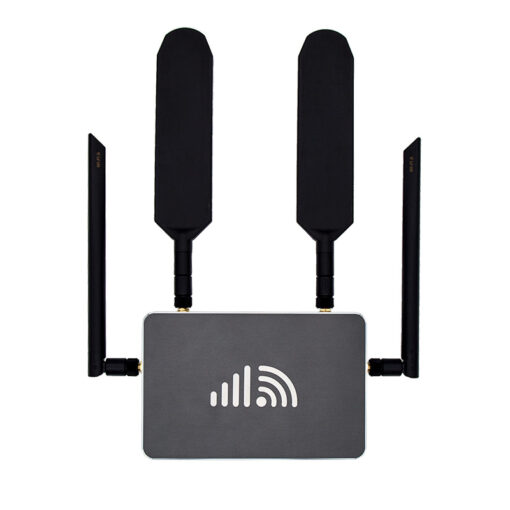

Innovation 4G Cellular Antennas
Wide-range frequency – support all 4G cellular networks.
Twistable 4G paddle antenna – adjust the direction easily.
SMA standard sockets – support external antennas.
A Safe & Open-sourced Firmware
Powerful firmware for 4G router, with QoS & OpenVPN.
Rooted with full authority, SSH, FTP, and software center.
Pre-built the bootloader. Contact us for an online demo test.
Home & Office
4G backup & WAN Internet
Supports up to 57 concurrent users
Industrial Applications
Provides LAN Ethernet and Wi-Fi
for IoT, CCTV, Vending machines, etc
Logistics & Caravan
Flexible installation & power sources
Enhanced 4G signal reception
Shop / Hotel / Restaurant
Wi-Fi network for guests
Enabled smart traffic control

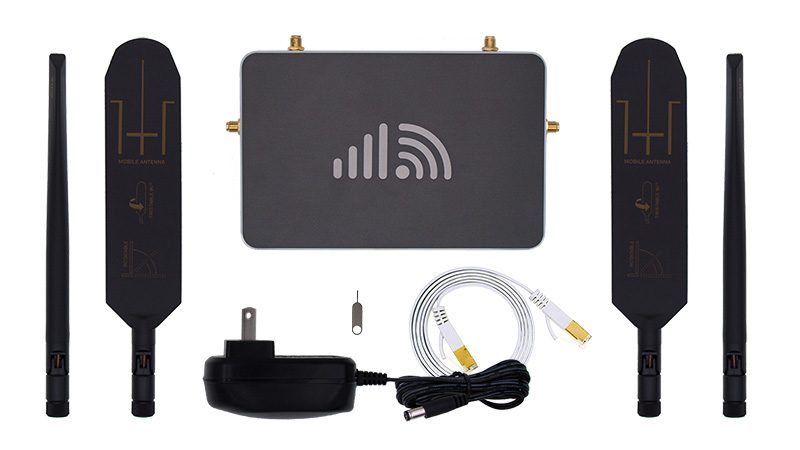

Package Contents - What Will You Get
Package Contents
1 x CAT6 4G Cellular router
Cat.6 cellular LTE-A modem
2 x 4G paddle antenna
2 x Wi-Fi whip antenna
1 x 1-meter LAN cable
1 x Power adapter – US plug
Be the first to review “CAT6 4G LTE Cellular Router WiFi Modem SIM Slot”
You must be logged in to post a review.
CAT 6 LTE-A Cellular Modem
| LTE Category: | CAT 6 |
| LTE Version: | 3GPP E-UTRA Release 11 |
| 4G FDD Bands: | B2/B4/B5/B7/B12/B13/B25/B26/B29Rx/B30/B66 Download max 300Mbps / Upload max 50Mbps |
| 2xCA Carrier Aggregation: |
B2+B2/B5/B12/B13/B29Rx B4+B4/B5/B12/B13/B29Rx B7+B5/B7/B12/B26 B25+B5/B12/B25/B26 B30+B5/B12/B29Rx B66+B5/B12/B13/B29Rx/B66 |
| 3G Bands: | B2/B4/B5 DC-HSPA+: DL Max 42Mbps WCDMA: DL 384Kbps / UL 384Kbps |
| Bandwidth: | 1.4/3/5/10/15/20/40(2xCA)MHz |
| Support Antenna: | DL MIMO, supports Rx-diversity |
| Temperature: | Working: -40°C ~ +85°C |
| Working Area: | North America (Canada & USA) |
| Certification: | GCF / / PTCRB/ FCC / IC |
CAT 6 LTE Modem for North America
EZEN3X Motherboard
| CPU: | Qualcomm Atheros QCA9531 |
| Frequency: | 650MHz |
| Memory: | DDR2 RAM 128MB |
| Flash: | SPI FLASH 16MB |
| SIM card slot: | Double Nano-SIM Cards (12.3×8.8mm) |
| WAN/LAN port: | 10/100Mbps |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Temperature: | Working: -40 to +80°C Storage: -50 to +90°C |
| Surge Protection: | Common-mode 6 kV Differential mode 1.5 kV |
| Humidity: | 10%~90% RH |
| Measurement: | Router 230x175x70mm / 980g |
Antennas
| 2 x 4G LTE antenna: | Frequency: 698~960 / 1710~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
| 2 x Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 5dBi / V.S.W.R.: ≤ 2.0 |
| Connector: | SMA Male (Not RP) |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
Wi-Fi Network
| Wi-Fi standards: | IEEE 802.11 a/b/g/n IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R MIMO (multiple-input multiple-output) |
| Transmission rate: | 300Mbps |
| Frequency: | 2.4GHz - 2412~2484 MHz |
| Channel: | 1~13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11b: 27±2dBm 802.11g: 25±2dBm 802.11n: 23±2dBm |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 57 users |
Power Sources
| AC Adapter: | Input: 110~240VAC 50/60Hz Output: 12Volt 2Amps |
| LAN Cable: |
1-meter LAN cable included |
| DC Socket: |
Wide range DC 9~48Volt |
