Canada 5G SIM Card Router Modem CAT16
C$583
The 5G cellular router with a basic 5G-NR module provides fast-speed and cost-effective cellular internet for home, office, IoT, and industrial applications. It supports Canada USA 3G/4G/5G cellular networks with a max 2.5Gbps download speed.
- 5G cellular modem with SIM card slot – Max 2.5Gbps download on 5G NSA mode.
- Supports 4G failover on Category 16. Built-in load balancing and Multi-WAN.
- Standalone powerful WiFi hotspots 50~100 yards and optimized antenna array.

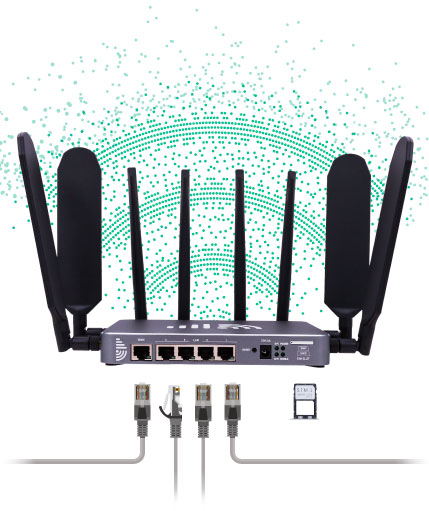

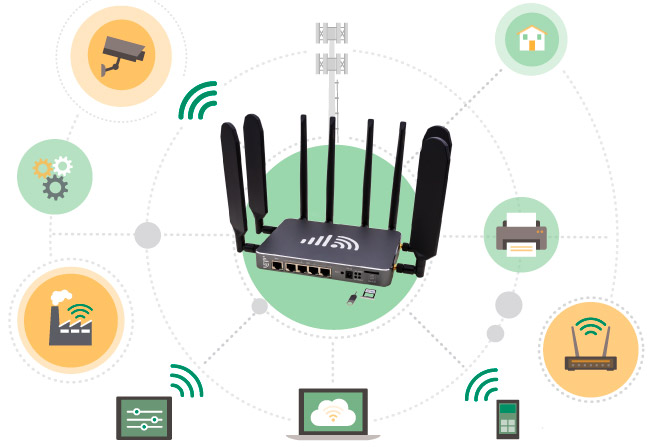

Cellular 5G Router with SIM Card Slot
Cellular 5G router home internet gateway with WiFi and Ethernet.
Insert a 5G SIM card to access the fast-speed 5G cellular network for home appliances and business equipment.
5G Cellular Modem
Support all of North American 5G networks
3GPP Release 15 NSA/SA operation, Sub-6 GHz
4×4 MIMO – Max 2.5Gbps download speed
Industrial-grade Router
Rugged cellular internet solution for home, office, IoT, and industry. Support external antennas.
Powerful 1200Mbps WiFi
Standalone hotspots on 2.4GHz & 5.8GHz
Robust wireless coverage for 50~100 yards
Gigabit Ethernet Ports
Supports WAN, WiFi relay and mobile failover
Fast speed 4x LAN Ethernet ports
Serve massive 120 concurrent users

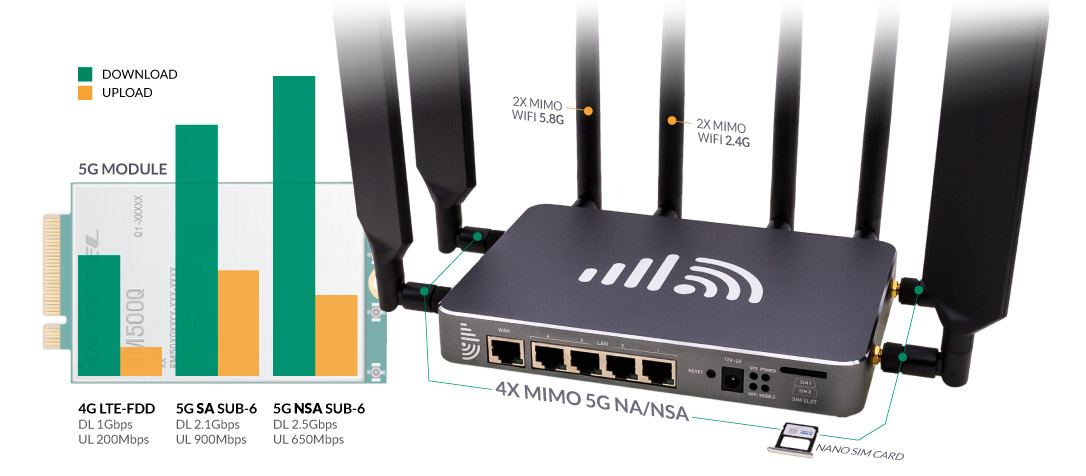

5G Cellular Modem Router
5G router built with the basic 5G-NR modem at an economical price.
It takes a Nano SIM card and supports Canadian USA carriers & global roaming.
Connect to 5G networks with NSA or SA modes. It supports all the North American
3G, 4G, and 5G Sub-6GHz bands, and the 4G fallback supports LTE CAT16.
Check more band and speed-rate specifications.
Optimized WiFi 5G Antenna Array
High-gain WiFi, 4G LTE, 5G Sub-6G antennas. Scientifically optimized antenna array for max coverage in a compact design. SMA connectors support external antennas.
Powerful Cellular Router Firmware
It is powered by specialized cellular WiFi router firmware with 5G modem drivers, cellular protocols, VPN tunnels, and powerful tools. The dedicated supervisory watchdog program keeps the cellular connection active.
Safe & open-sourced firmware – With bootloader and full authority.
Contact us for the online demo.
At Home & Office
4G/5G internet & WAN failover
5G max 2.5Gbps – 4G max 1Gbps
For Live Video Streaming
Max 650Mbps upload speed for online learning and video chat
For Camera & CCTV
Long-range WiFi coverage
1Gbps LAN & 1200Mbps WiFi
On Boat & Caravan
Global roaming 3G/4G/5G router
Stay connected to the internet
Industrial Applications
M2M optimized work with 12VDC
WAN LAN & long-range WiFi
Shop / Hotel / Restaurant
Serve 120 users at the same time
Guest WiFi & failover load-balance

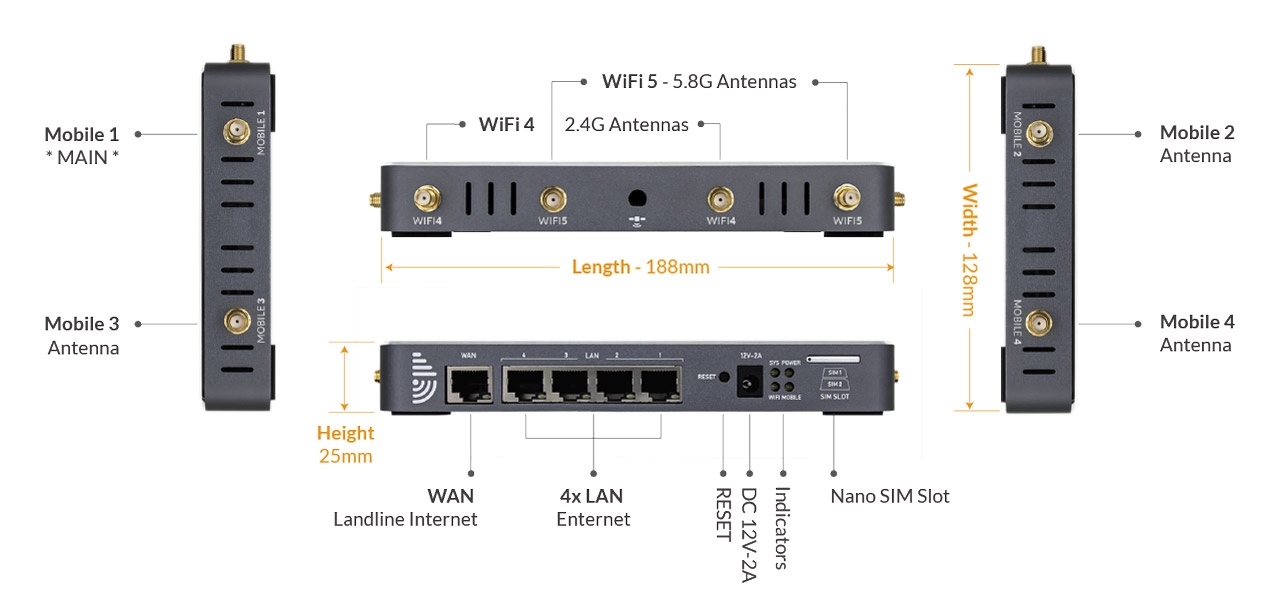

5G Router Hardware Overview
Robust cellular modem router is designed for rugged environments and industrial applications.
The modular hardware design allows easily upgrading antennas and even cellular modules.

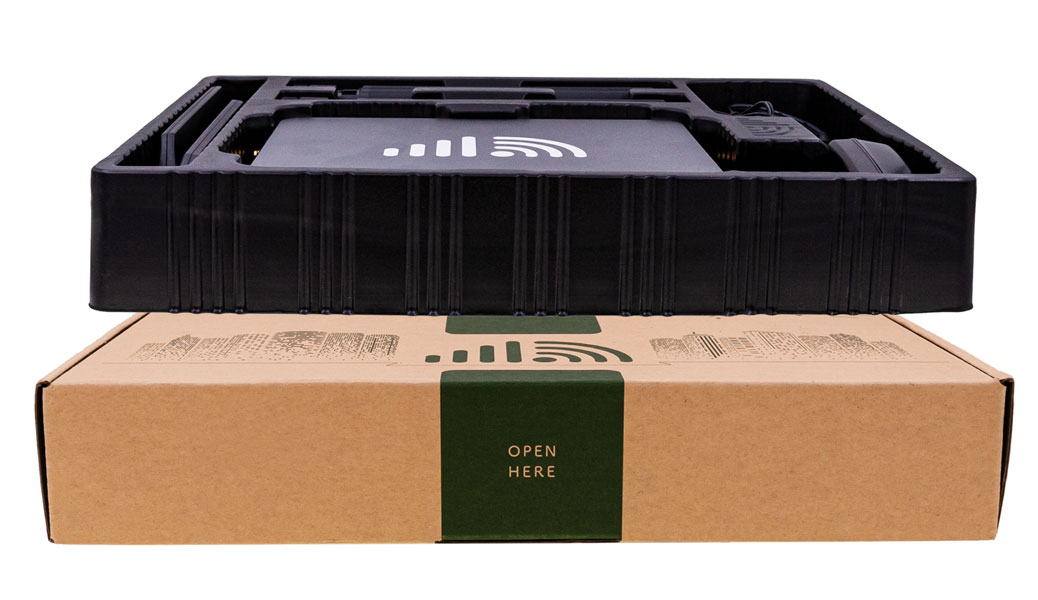

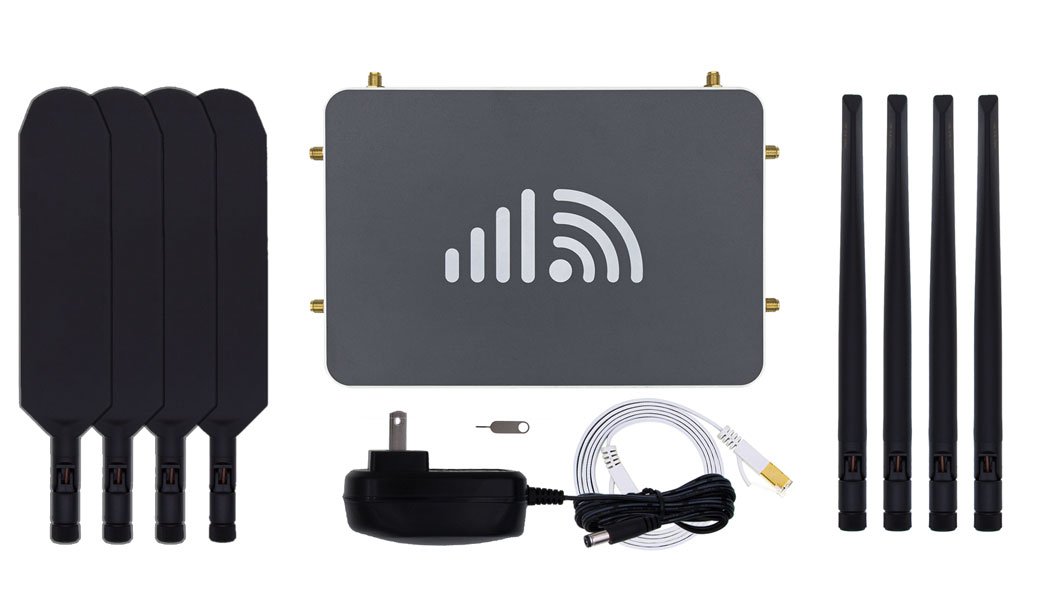

Package Contents - What You Will Get
The package includes the contents below, a 15-day money-back warranty, and a 1-year quality guarantee.
You will also receive our zealous customer services and technical support!
Packing List
1 x 5G cellular modem router
4 x 5G paddle antenna
4 x WiFi whip antenna
1 x 1-meter LAN cable
1 x Power adapter – US plug
Be the first to review “Canada 5G SIM Card Router Modem CAT16”
You must be logged in to post a review.
5G NR Cellular Modem
for North-American 3G/4G/5G Networks
The basic 5G cellular modem supports major 5G NA NSA networks in the USA and Canada. It also supports global roaming - except for PRC.
5G-NR Cellular Modem
| Specification | 5G NR | 4G LTE |
| Category: |
3GPP Release 15 |
Download CAT16 Upload CAT18 |
| Bands: | 5G NR SA & NSA: N1 2 3 5 7 8 12 20 25 28 38 40 41 48 66 71 77 78 79 |
FDD Bands: B1 2 3 4 5 7 8 12 13 14 17 18 19 20 25 26 28 29 30 32 66 71 TDD Bands: B35 38 39 40 41 42 43 48 |
| MIMO: | Download 4xMIMO N1 2 3 7 25 38 40 41 48 66 77 78 79 Upload 2x MIMO on N41 |
Download 4xMIMO B1 2 3 4 7 25 30 32 34 38 39 40 41 42 43 48 66 |
| Download Speed: | 5G NSA: 2.5Gbps 5G SA: 2.1Gbps |
1.0Gbps |
| Upload Speed: | 5G NSA: 450Mbps 5G SA: 650Mbps |
200Mbps |
| 3G WCDMA: | Band 1 2 3 4 5 6 8 19 DL42Mbps UL5.76M |
|
| Temperature: | Working: -30°C ~ +70°C | |
| Modem Cert.: | GCF CE PTCRB FCC RCM |
Motherboard Top Down View
EZEN4X3 Version 1.2
EZEN4X3 - Router Motherboard
| CPU Chipset: | MTK7621 MIPS1004Kec |
| Clock Speed: | 880MHz |
| Memory: | DDR3 256Mbyte / SPI FLASH 16MB |
| Modem Socket: | 1x M2.0 (Active) and 1x Mini PCI Express v2.0 |
| SIM Card Slot: | Double Nano-SIM Cards (12.3x8.8mm) |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Temperature: | Working: -20 to +70°C / Storage: -40 to +85°C |
| Humidity: | 0%~100% RH |
| Physical Interface: | 1x WAN & 4xLAN / 8x Antenna sockets Nano-SIM card slot / 1x Reset button |
Wi-Fi Hotspots
| Frequency: | 2.4GHz: 2412~2472 MHz |
| Wi-Fi Channel: | 1~13 |
| Speed Rate: | 300Mbps |
| Output Power: | 27dBm |
| Wi-Fi Standard: | IEEE 802.11 a/b/p/g/n/ac IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R Wave 2.0 MU-MIMO |
| Mesh Wi-Fi: | EasyMesh standard |
RF Antennas
| 4 x 5G Antenna: | 700~960 / 1710~2170 / 2300~2700 / 3400~4900 MHz -1~3±1dBi Gain / ≤ 3.5 V.S.W.R. Size: Width 42mm Length 179~209mm Material: ABS |
| 4 x Wi-Fi Antenna: | 2x 2.4GHz Wi-Fi Antenna: 2400~2500MHz Gain: 4~5dBi / V.S.W.R.: ≤ 1.92 2x 5.8GHz Wi-Fi Antenna: 5150～5850MHz Size: Ø13 x 201 mm / Material: TPEE |
| Connector: | SMA Male |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
DC Power Adapter
| Input: |
AC 100~240Volt 50/60Hz 0.5Amps |
| Output: | DC 12Volt 2.0Amps |
| Measurement: | 75.7*47.2*31.3mm / 140g Depending on the AC plug |
| AC Plug: | EU/GB/US/AU standard available Ship depends on the destination |
| DC Jack: | Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Length 1200mm |
| Protection: | Short circuit, overload, and over-voltage |
| Certification: | CE / UL / FCC / DOE / ERP / GS / BS / SAA |
SIM Router Firmware
| Router Firmware: | OpenEzen Series - EV40xx |
| Log in: | IP address: 192.168.20.1 Password: root |
| Built-in Protocols: | Mobile: Mobile-Data (QMI) and PPP WAN: PPPoE / DHCP / Static LAN: Static with DHCP server (IPv4 & IPv6) |
| VPN Tunnel: | PPTP, L2TP, IPSec, OpenVPN, and WireGuard |
| Cloud Management: | Traversal Cloud and Ezen-Cloud (Optional) |
| Security: | Anti DDoS, SPI firewall, IP/Mac/Domain Filter, IP & Mac bind |
| Port Forward: | Virtual server, port triggering, UPnP, DMZ |
| Computer: | Windows / Mac / Linux / etc |
| Bootloader: | uBoot (192.168.1.1) |
Please feel free to contact us if you need any further information about the product.
