Micro Nano SIM Card for Outdoor 4G Router

Outdoor 4G Router with SIM Card Slot

The 4G Router has built-in SIM card slot. You need to buy a new SIM card or use current SIM card on the 4G router. It support all of the SIM cards using on a smartphone.

Note:Please turn off the router by unplugging the power supply before inserting a SIM card. If installed the SIM card when the router is powered on, please reboot the router by unplugging the power supply.

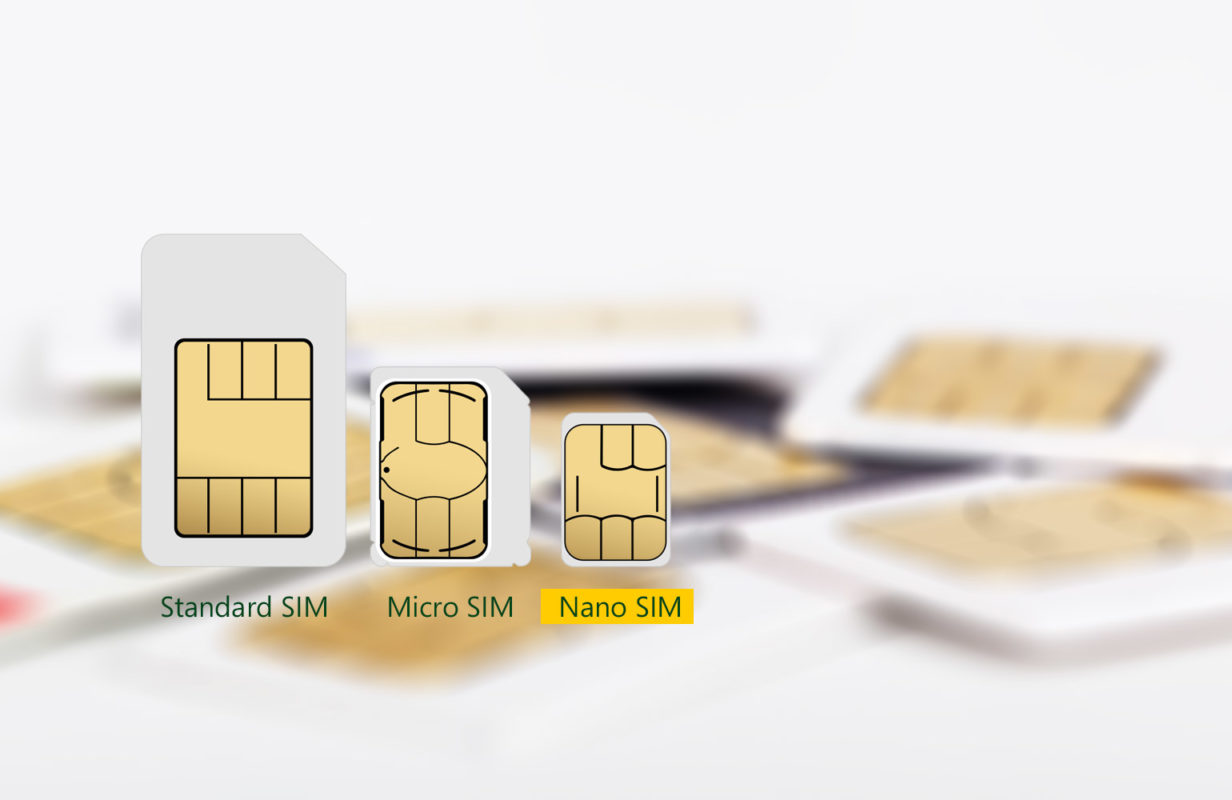

SIM CARD MEASUREMENTS

There are three different sizes of SIM cards, including Standard SIM, Micro SIM, and Nano SIM.

The Standard SIM card size is 1″ long by 0.6″ wide (25x15mm).
The Micro SIM card is half the size of standard SIM card. Measuring 0.6″ long by 0.5″ wide (15x12mm).
The Nano SIM card is 40% smaller than the micro-SIM card. Measuring 0.5″ long by 0.3″ wide (12.3×8.8mm).

SIM CARD INSTALLATION

Use standard SIM card for EZR30 MIMO router



EZR30 series 4G MIMO outdoor router requires to use the USIM standard SIM card. Measuring 1″ long by 0.6″ wide (25x15mm).

Make sure USIM card pins are facing down, and the notch is inside. You could feel/hear a little click hood after successfully inserted the USIM card.

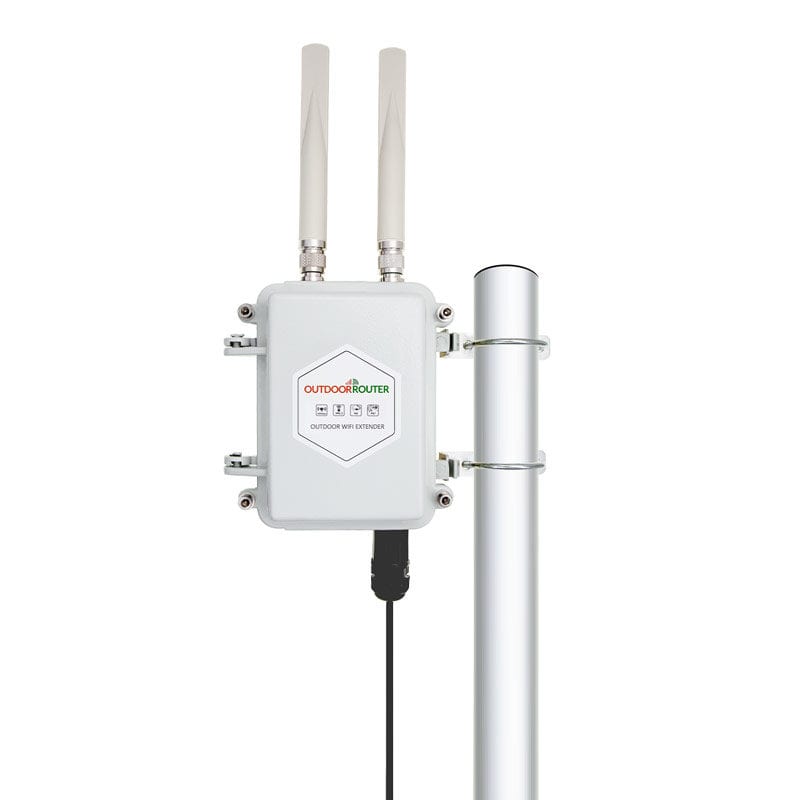

EZR10 Outdoor WiFi Extender Pole Installation

Use standard SIM card for EZR20 indoor 4G routers

EZR20 series 4G indoor router requires to use the USIM standard SIM card. Measuring 1″ long by 0.6″ wide (25x15mm).

Make sure USIM card pins are facing up, and the notch is inside. You could feel/hear a little click hood after successfully inserted the USIM card.

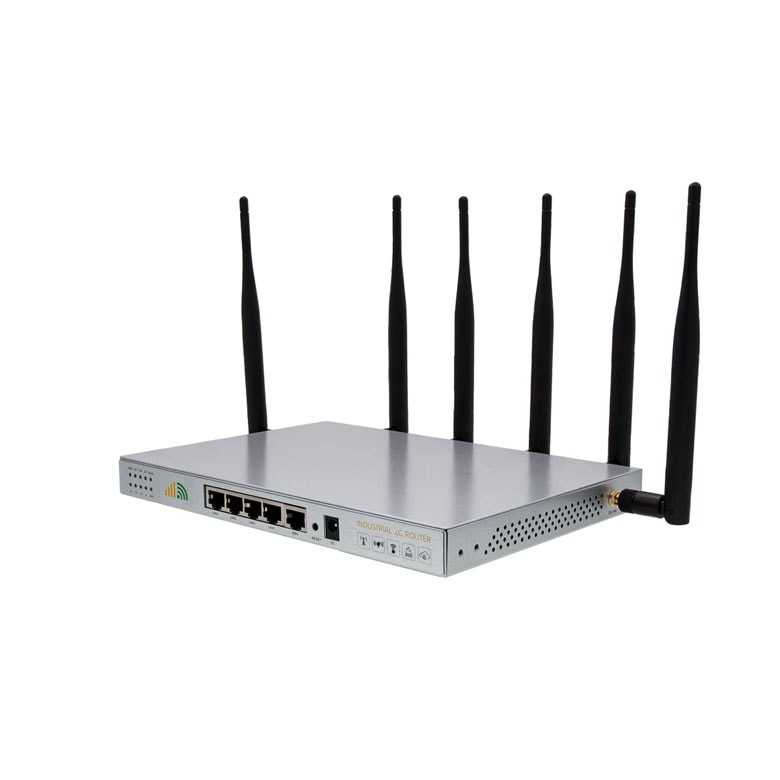

EZR20 Industrial 4G Router 6xAntenna

Use standard SIM card for WRT4 series outdoor routers

WRT4 series 4G outdoor router requires to use the USIM standard Nano SIM card. Measuring 0.5″ long by 0.3″ wide (12.3×8.8mm).

When inserting the USIM card, its golden pins should face down, and the notch is inside. You could feel/hear a little click hood after successfully inserted the USIM card.

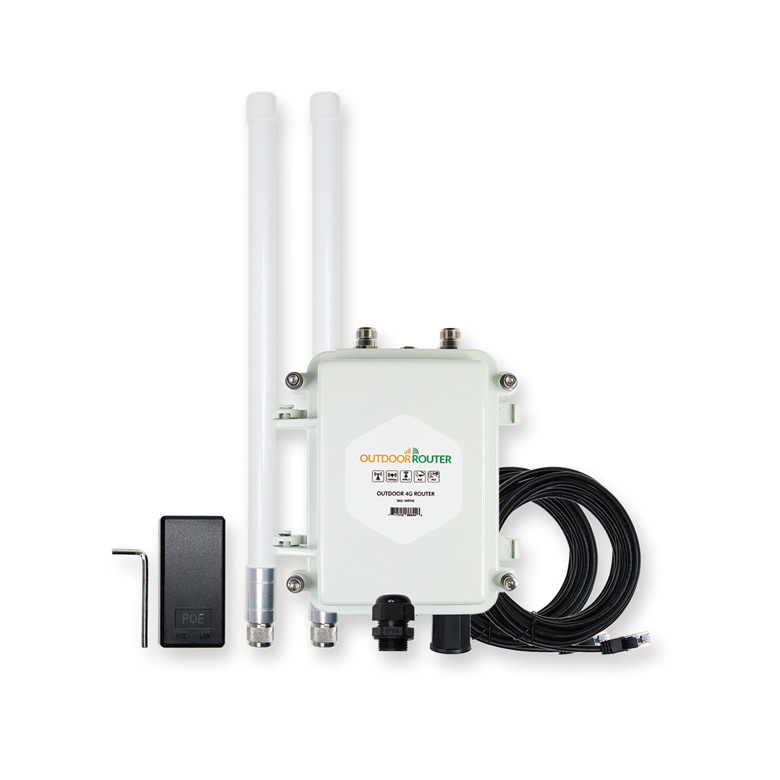

Outdoor 4G Router WiFi Booster V3

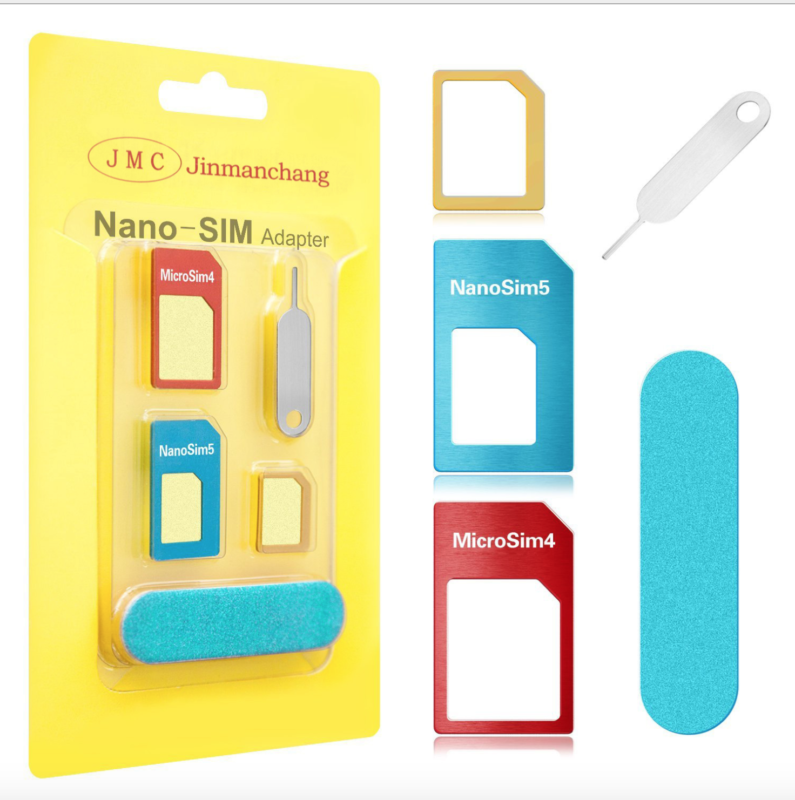

Free SIM Card Adapter Set

A set of SIM card adapter included in the 4G router with free. You can even modify the SIM card edge on the supplied sand paper.

Free SIM Card Adapter Kit
