- CAT12 LTE modem for Canada cellular networks & global roaming
- 2.4G & 5.8G MIMO WiFi hotspots provide 150~300yards coverage
- Long-distance PoE power supply has 1Gbps LAN Ethernet
Canada 4G Cellular Modem Outdoor Router CAT12
C$597
The outdoor 4G router has a CAT12 cellular modem and SIM card slot. It uses direct external antennas to reduce signal attenuations and receive the best outdoor mobile signals. It has a featured IP67 enclosure that offers the best waterproof protection for long-term uses.
Outdoor 4G Cellular Router CAT12 Modem
Outdoor 4G routers offer you fast-speed internet from a SIM card
IP67 waterproof outdoor router with LTE-A CAT12 cellular modem

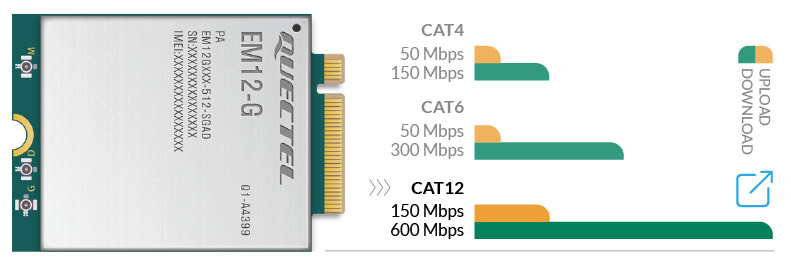

CAT12 LTE-Advanced Modem
Max 600Mbps download speed over LTE
Max 150Mbps upload speed – 3× of CAT6
4G cellular modem with Nano SIM card slot
1200Mbps Dual-band MIMO WiFi
Outdoor 4G WiFi hotspots 2.4GHz & 5.8GHz
1-Watt WiFi coverage for 150~300 yards
Waterproof 4G SIM Router
Exclusive outdoor IP67 waterproof enclosure
Robust quality withstands extreme weather

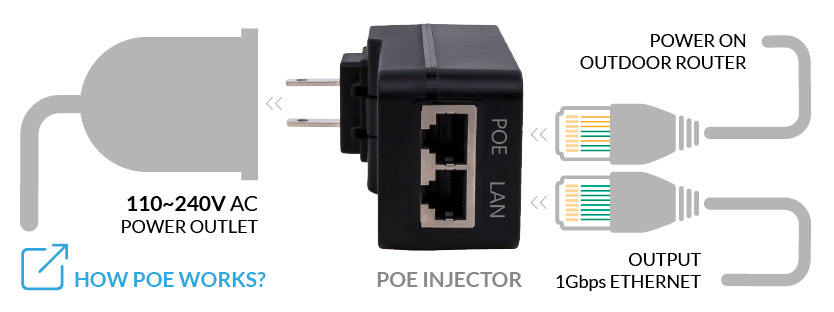

Gigabit PoE & Ethernet
Long-distance power supply on PoE injector
1Gbps wired Ethernet from PoE LAN port
Supports alternative 9~52V DC power
Free Ship from Québec CA
2~5 days ship time by UPS and FedEx. Guarantee safe express delivery.
Money Back Warranty
Safe shopping with a 15-day money-back and 1-year quality warranty.
IP67 Outdoor Router
IP67-rated waterproof protection. Outdoor grade 24/7 working.

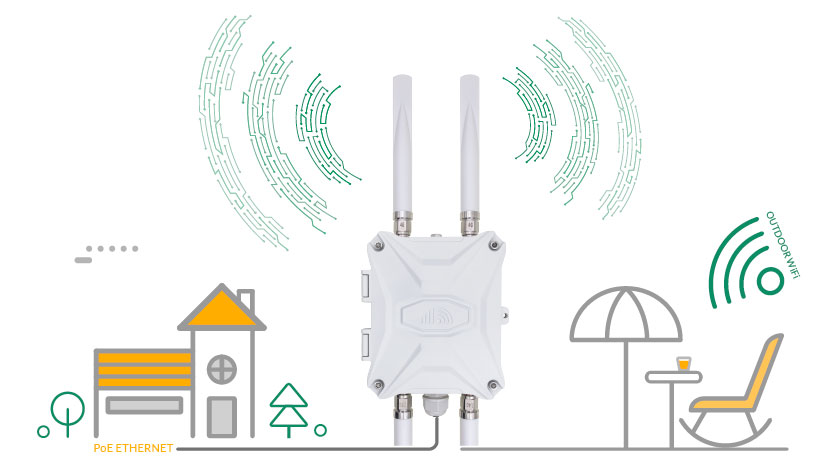

Slow cable internet? Weak 4G signals indoors? It’s time to go outdoors!
4G WiFi Router Designed for Outdoor
The outdoor 4G WiFi router has external antennas to receive the best outside cellular signals and provides fast-speed LTE internet on WiFi and Ethernet.
Receive the best signals – Fewer RF interferences & barriers in outdoor.
Direct connected external antennas reduce signal attenuations.
Bring WiFi internet to outdoor backyards for cameras, sensors, etc.
Provides 4G failover internet to your existing indoor network.

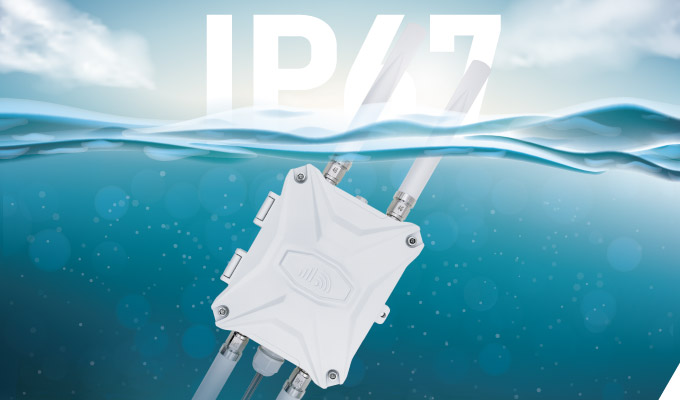

Outdoor IP67 Waterproof Enclosure
The exclusive outdoor enclosure is featured complete waterproof protection, anti-corrosion aluminum material, and outdoor coating.
IP67 Certificated – Passed waterproof tests of IEC 60529. Protect against water & dust for long-term outdoor uses.
Lighting protection – Common 6KV & differential 1.5KV. Withstand outdoor extreme weather -40° ~ +80° celsius.

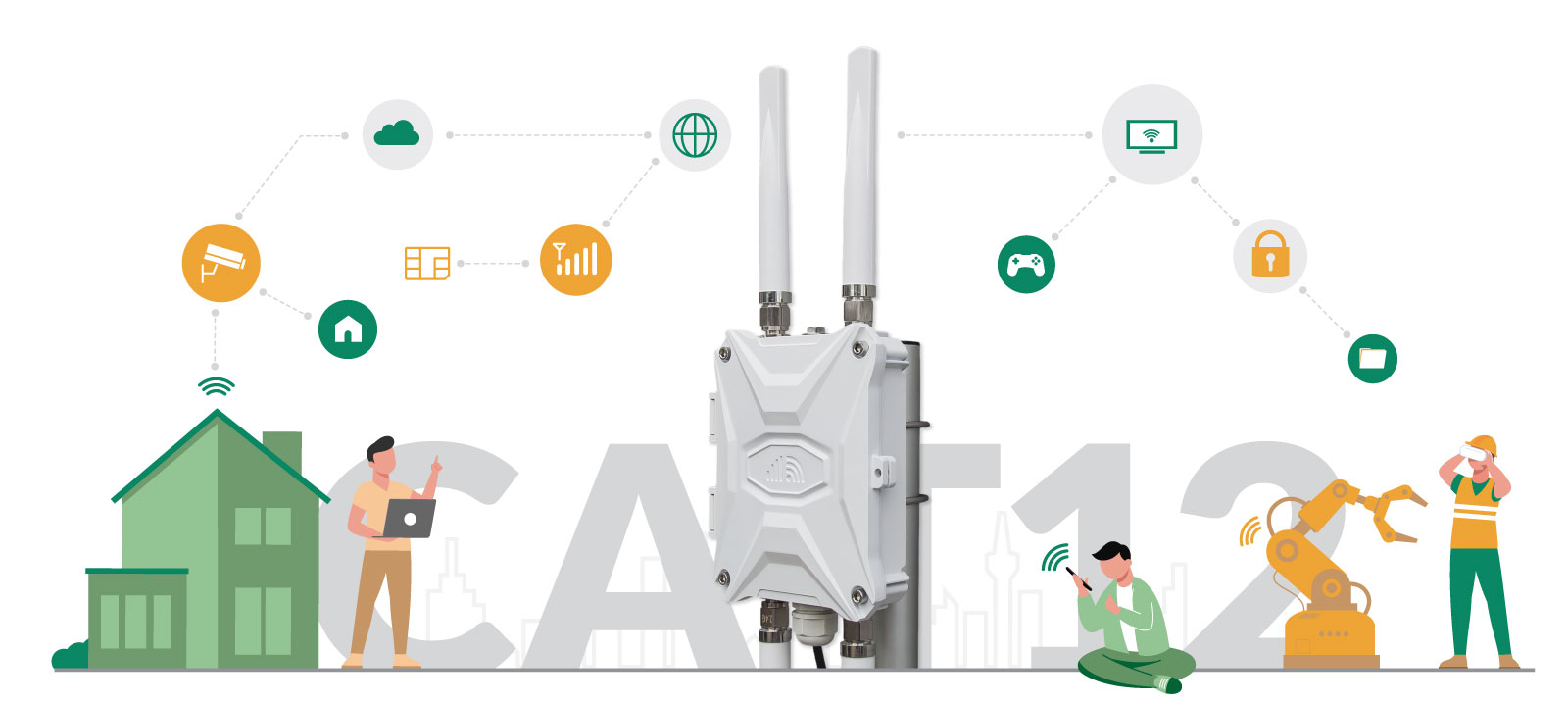

The Latest Outdoor 4G Router CAT12
CAT12 outdoor 4G router helps you to get fast-speed internet with a SIM card.
Plug and Play 4G Router
CAT12 4G router is easy to use, and its firmware has built mobile APN protocols and essential functions.
Our powerful 4G router firmware is open source and allows the installation of new plugins.
Watchdog keeps mobile internet alive and supports band lock & 4G bridge.
It has port forwarding, load balance, and free Traversal Cloud for remote access.
Supports SSH FTP and integrates VPN of OpenVPN and WireGuard.

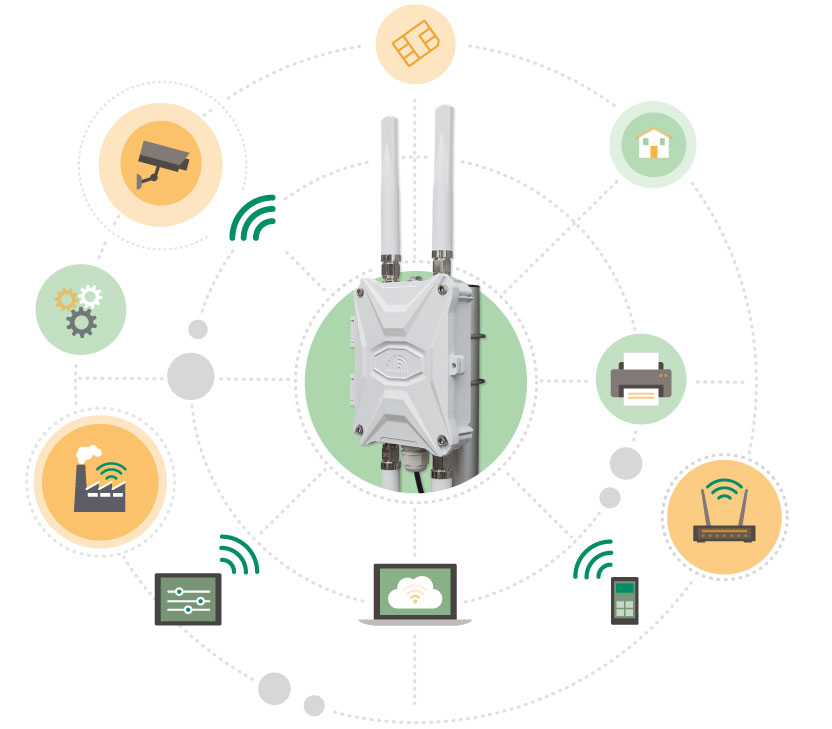

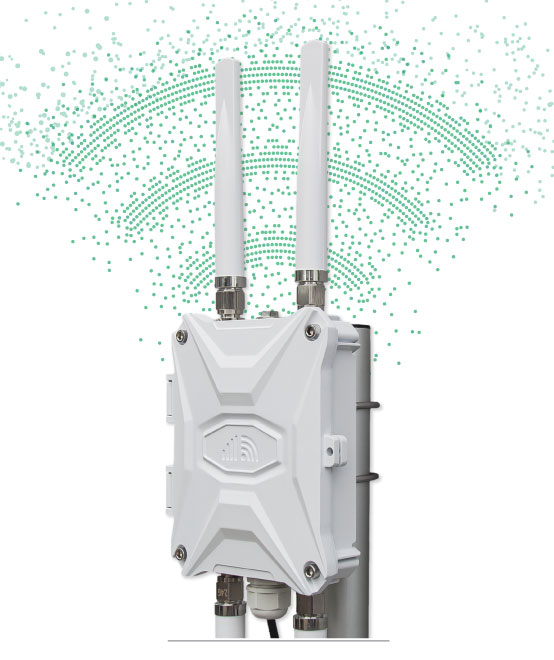

Outdoor MIMO WiFi Coverage
The standalone 4G WiFi router creates MU-MIMO WiFi hotspots on 2.4GHz and 5.8GHz, totaling 1200Mbps.
- Provides extreme wireless coverage of 150~300 yards.
- Supports WiFi relay mode to work as a repeater.
- Integrated master WiFi SSIDs and isolated guest WiFi.
At Home & Office
Support 4G SIM card and landline
1Gbps LAN & 1200Mbps Wi-Fi
For Live Video Streaming
Max 150Mbps upload speed for online learning and video chat
For Camera & CCTV
Long-range WiFi coverage
Link cameras with 4G internet
On Boat & Caravan
Travel with a 4G LTE router
Stay connected to the internet
Industrial Applications
M2M optimized on PoE & DC
WAN LAN & long-range WiFi
Shop / Hotel / Restaurant
Serve 120 users at the same time
Guest Wi-Fi & 4G failover internet

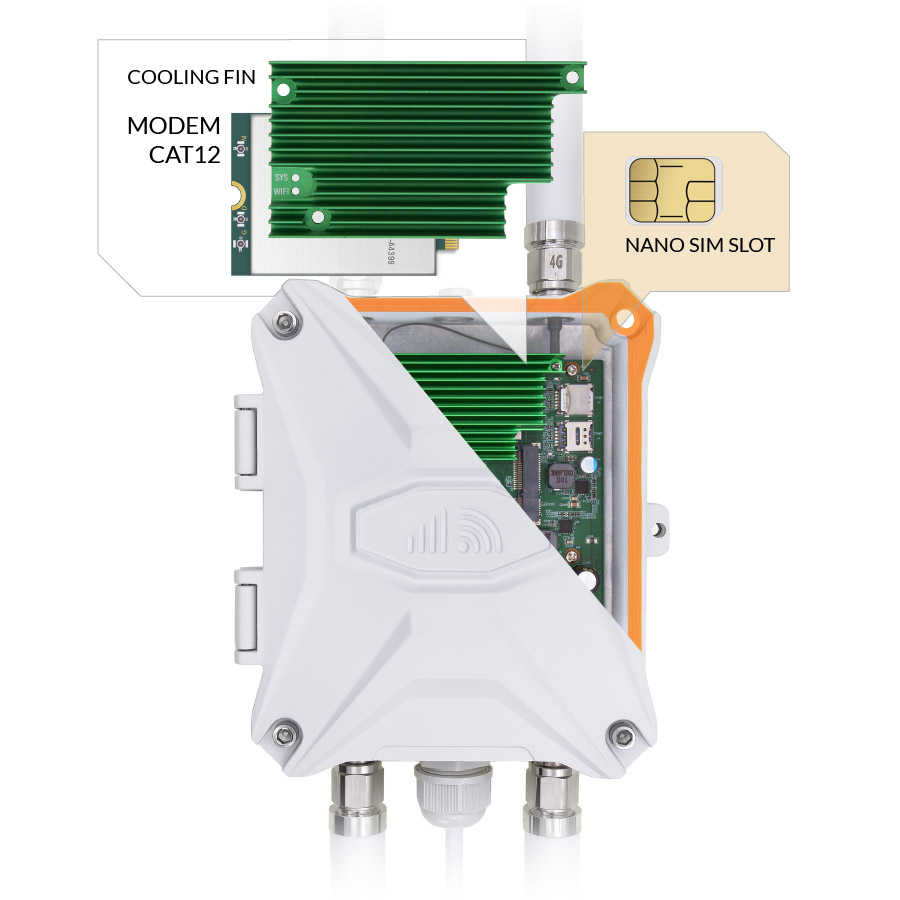

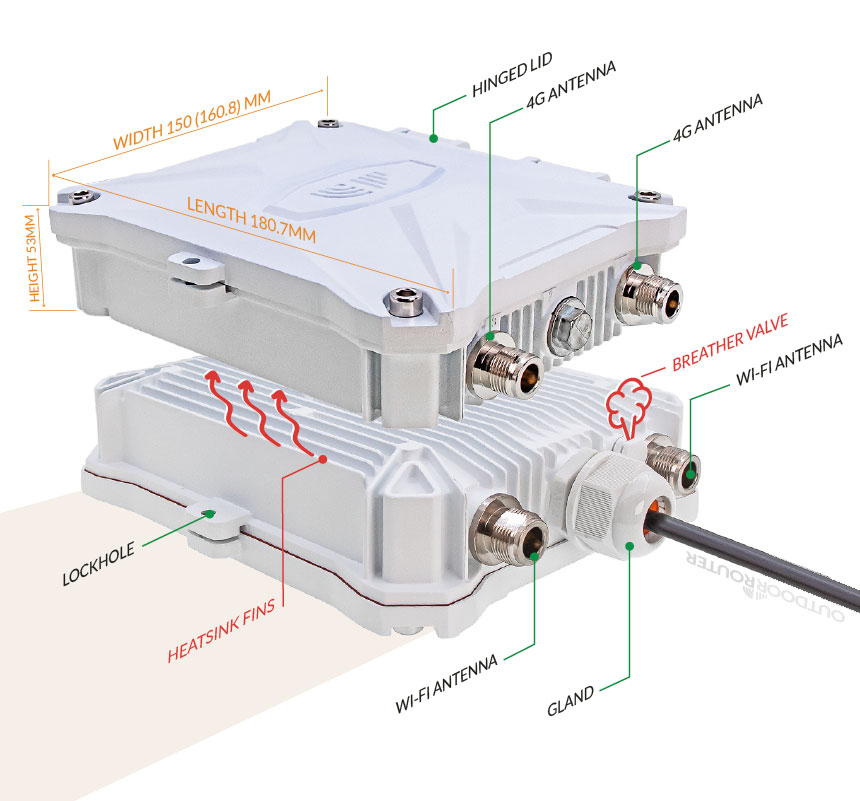

Hardware Overview on Outdoor 4G Router
The durable outdoor router offers stable internet links in rugged environments and industrial applications.
The innovative modular design provides flexible installations and easy upgrades.

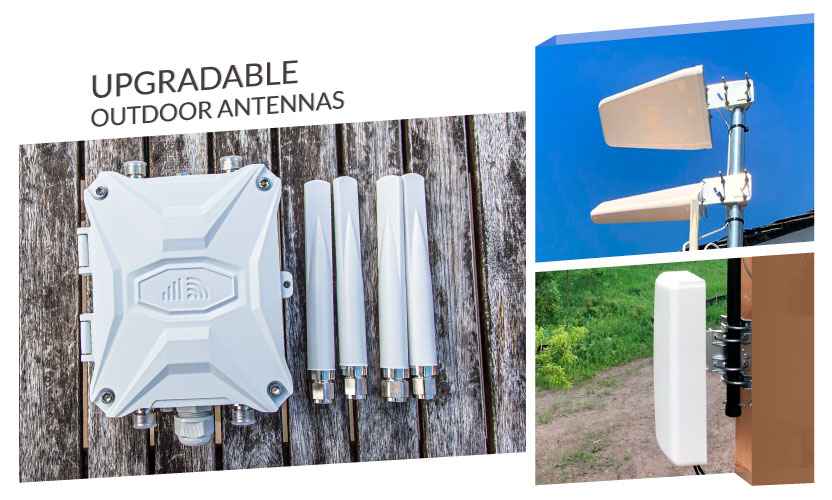

External 4G/WiFi Antennas
The robust Omni-directional antennas pick mobile 4G signals in all directions, and you can replace them with higher-gain antennas.

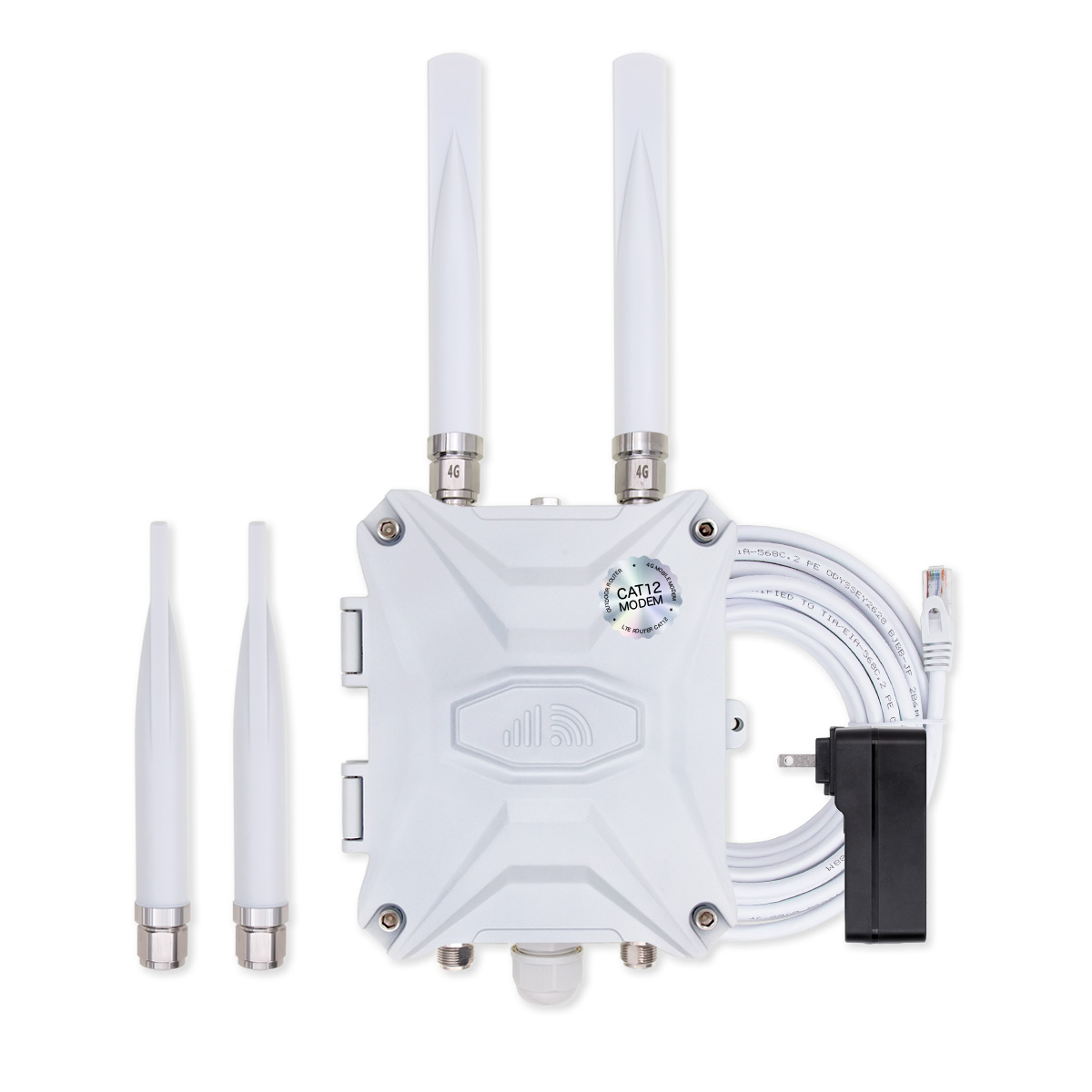

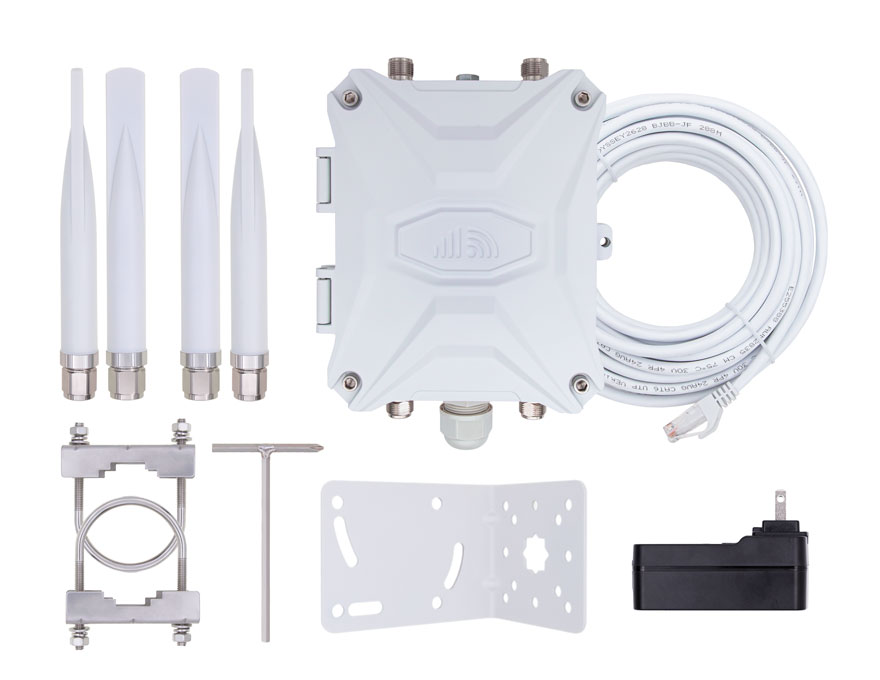

What Will You Get in the Package
The package includes the contents below, a 15-day money-back warranty, and a 1-year quality guarantee.
You will also receive our zealous customer service and technical support.
Package Contents
1 x CAT12 Outdoor 4G Router
2 x Full-band Omni LTE Antenna
2 x Mix-band Omni WiFi Antenna
1 x 10-meter outdoor LAN Cable
1 x Gigabit PoE Injector (US Plug)
1 x Mounting Kit (Bracket Wrench etc.)
Note: Exclude SIM cards
Frequently Asked Questions
Click Specification Tab
to view technical specifications.

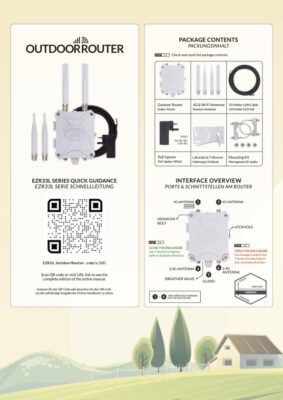

Download Quick Guidance of EZR34 Outdoor Router
Visit the Online User Manual
Got a question? Contact Us or acquire an online demo.
Services
How long does it take to arrive?
We offer free shipping and safe express delivery from warehouses in Quebec and Los Angeles. Lead time is 24 hours, and the transit time is 2~6 working days. The shipping couriers are UPS, Cabada Post, and FedEx.
What is your return policy?
We offer a 15-day money-back guarantee upon receiving the shipment and provide a 1-year warranty on the product quality. Check more on the warranty policy.
Modem & SIM Card
What kind of SIM card & data plan are suitable?
The outdoor 4G router supports all the cellular networks in USA & Canada. The SIM card slot takes a Nano standard SIM card, 0.5" by 0.3" inch (12.3x8.8mm).
The 4G modem router is unlocked to use any workable data plan, such as a regular phone SIM, data-only plan, and IoT data plan. Please ensure the SIM card is activated and unlocked. A locked SIM card could only work on the specific bound modem device.
What is the difference between these outdoor routers?
This EZR34-012 router offers 1Gbps LAN and 1200Mbps WiFi with a faster speed CAT12 modem. The EZR33L series has 100Mbps LAN and 300Mbps WiFi with selectable CAT4/6 modems.
The CAT6/12 LTE-Advanced modems can provide fast speed for high-traffic applications such as video streaming. The CAT4 model is more suitable for low-traffic demands and applications such as IoT devices.
| Router SKU | LAN | WiFi | LTE Category | Max Download | Carrier Aggregation |
| EZR34-A012 | 1Gbps | 1200Mbps | CAT12 | 600 Mbps | Max 3x CA |
| EZR33L-Q6 | 100Mbps | 300Mbps | CAT6 | 300 Mbps | Max 2x CA |
| EZR33L-A4 | 100Mbps | 300Mbps | CAT4 | 150 Mbps | No |
4G Router Applications
How does the 4G router work?
The 4G router has a SIM card slot and LTE modem inside. After inserting a workable SIM card, the LTE modem connects to mobile networks and gets an internet connection. The 4G router can output the internet traffic on the WiFi hotspot and wired LAN port.
LAN Ethernet - You can connect another router to the LAN port on the PoE injector and extend the intranet network.
Does it support mobile carrier aggregation?
The CAT12 LTE modem supports max 3x carrier aggregation and automatically turns on when having sufficient signals..
For Example one of the 3x CA modes (2 Intra-band & Inter-band) includes:
B2+2+5 | B2+2+13 | B3+3+7 | B3+7+7 | B3+3+20 | B3+3+28 | B3+3+1 | B4+4+5 | B4+4+13 | B7+7+28 | B5+66+66 | B13+66+66 | B66+66+2 | B39+39+41 | B39+41+41 | B14+B66+B66
How to know if a 4G router is workable in my area?
The 4G router needs a fair signal reception (above -101dBm RSRP signal) and a workable SIM card. You can run a field test of the signal reception. If the signal is too weak, you can upgrade the 4G antenna to higher-gain models to get the best available signals.
Using a mobile signal booster with the 4G routers is not recommended since it increases the noise level, which causes slower internet speed and even packet loss.

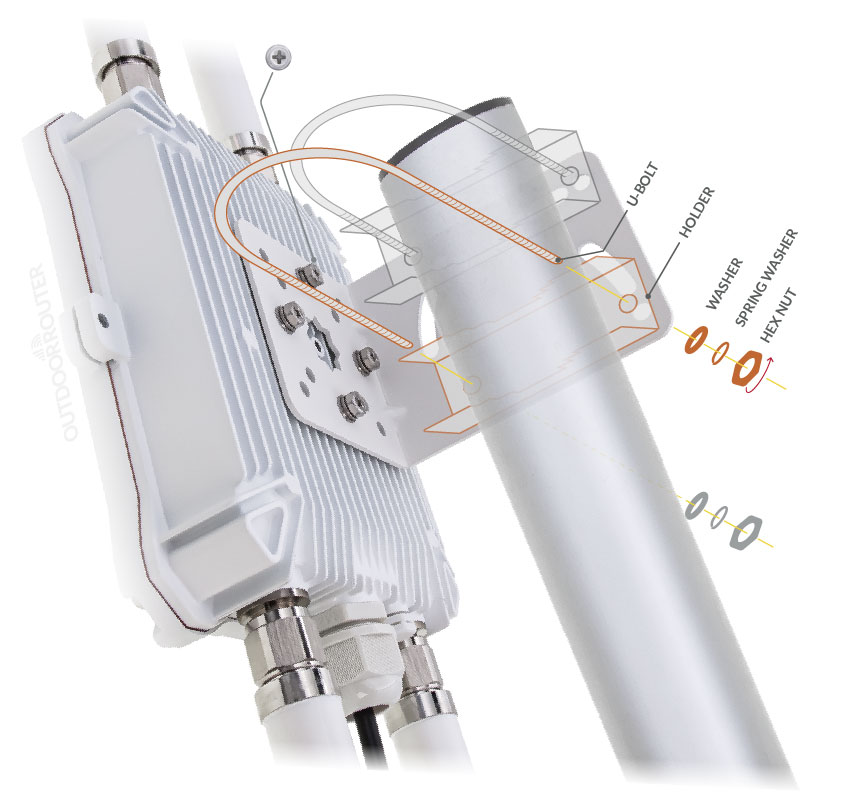

How to install the outdoor router?
The outdoor router package includes a complete set of brackets, a wrench, and a manual. You can twist the bracket to install it in flexible directions, horizontally or vertically. The suggested installation is on a Ø35~50mm pole that is not included.
Can I power the 4G router with 12Volt power?
The outdoor 4G router takes 52Volt power from the included PoE injector and supports an alternative DC power supply on the DC socket.
You can go through the power wire from the gland to the DC socket on the motherboard, which takes 9~52Volt DC power on standard Ø 5.5/2.1 jack.
Do not use overloaded electric power. For example, the typical 12Volt power should have a 1.5~2.0Amps current.
Does it support remote access?
We offer free cloud access on all outdoor routers. You may access the 4G router on a web browser anytime, anywhere. Due to privacy and security, the cloud access is turned off on default settings..
Be the first to review “Canada 4G Cellular Modem Outdoor Router CAT12”
You must be logged in to post a review.
CAT12 LTE-A Modem
for Global 3G/4G Mobile Networks
Cat-12 LTE-Advanced Modem
| Specification | 4G LTE | 3G |
| Bands: | FDD Bands: 1/2/3/4/5/7/8/9/12/13/14/ 17/18/19/20/21/25/26/28/ 29/30/32/66 TDD Bands: 38/39/40/41 | Bands: 1/2/3/4/5/8/9/19 |
| Download Speed: | FDD: Max 600Mbps TDD: Max 430Mbps | DC-HSDPA: Max 42Mbps WCDMA: Max 384Kbps |
| Upload Speed: | FDD: Max 150Mbps TDD: Max 30Mbps | HSUPA: Max 5.76Mbps WCDMA: Max 384Kbps |
| Carrier Aggregation: | Download: 3x CA or 2x CA Upload: 2x CA |
/ |
| Signal Modulation: | 256QAM | 64QAM |
| Output Power: | Class 3 (23dBm±2dB) | WCDMA: 24dBm+1/-3dB |
| 3GPP Release: | 3GPP Release 11 | |
| Bandwidth: | 1.4/3/5/10/15/20MHz | |
Motherboard Top Down View
EZEN4X3 Version 1.2
EZEN4X3 - Router Motherboard
| CPU Chipset: | MTK7621 MIPS1004Kec |
| Clock Speed: | 880MHz |
| Memory: | DDR3 256Mbyte / SPI FLASH 16MB |
| Modem Socket: | 1x M2.0 (Active) and 1x Mini PCI Express v2.0 |
| SIM Card Slot: | Double Nano-SIM Cards (12.3x8.8mm) |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Temperature: | Working: -20 to +70°C / Storage: -40 to +85°C |
| Humidity: | 0%~100% RH |
| Physical Interface: | 1x PoE/WAN & 1xWAN / 4x Antenna sockets 2x Nano-SIM card slot / 1x Reset button |
Wi-Fi Hotspots
| Frequency: | 2.4GHz: 2412~2472 MHz | 5.8GHz: 5180~5825MHz |
| Wi-Fi Channel: | 1~13 | 149, 153, 157, 161, 165 |
| Speed Rate: | 300Mbps | 867Mbps |
| Output Power: | 27dBm | 26dBm |
| Wi-Fi Standard: | IEEE 802.11 a/b/p/g/n/ac IEEE 802.3 and IEEE 802.3u | |
| MIMO Wi-Fi: | 2T2R Wave 2.0 MU-MIMO | |
| Mesh Wi-Fi: | EasyMesh standard | |
RF Antennas
| 2 x 4G Antenna: | Frequency: 700~960 / 1710~2170 / 2300~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
| 4 x Wi-Fi Antenna: | Frequency: 2400~2500MHz / 5150～5850MHz Gain: 4~5dBi / V.S.W.R.: ≤ 2.0 |
| Measurement: | Φ22×180mm |
| Connector: | N Male |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input Power: | 10 Watt |
PoE Power Supply
| PoE Injector: | Input: AC 100~240Volt 50/60Hz Output: 52Volt 0.5Amps |
| LAN Cable: | CAT6 outdoor grade 10-meter cable included * Supports max 50-meter length LAN cable |
| PoE Wiring: | DC+ 4,5 | DC- 7,8 Ethernet on all wires |
| AC Plug: | EU/GB/US/AU standard available * Ship depends on the destination |
DC Power Supply
| DC Socket: | Takes wide-range 9~52V DC power |
| DC Jack: | Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Supports max length 12-meter |
Note:
1) DC power supply is not included. Don't overload on DC socket.
3) The typical DC powers are 12Volt 1.5~2.0Amps / 48~52Volt 0.5Amps.
EV4X - 4G Router Firmware
Function chart is base on firmware Version EV4034
Read more about EV4X firmware releases & tutorial
| Mobile Protocol: | Mobile Data, QMI, and 4G-PPP |
| Command Sets: | MMCLI, QMICLI, and AT command sets |
| Mobile Status: | SIM card, Connection status, mobile operator Signal strength (Cell ID, RSRQ, RSSI, RSRP & SNR) IMEI, IP address, and TX/RX data flow |
| Band Management: | Mode lock between 2G 3G and 4G 3G and LTE band lock on web interface |
| APN: | Auto APN included Custom APN parameters available |
| Mobile Roaming: | On/off as you set |
| Accessibility: | Web GUI interface, SSH terminal, and FTP/SFTP |
| Link Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
| Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
| Traffic Control: | QoS, SQM, and load balancing |
| Firewall: | Open new port, port forwarding, and custom rules |
| Diagnostics: | Ping, Traceroute, and Nslookup |
| VPN Tunnel: | OpenVPN, IPSec, and WireGuard |
| Remote Control: | Free traversal cloud * TR069 available on demand |
